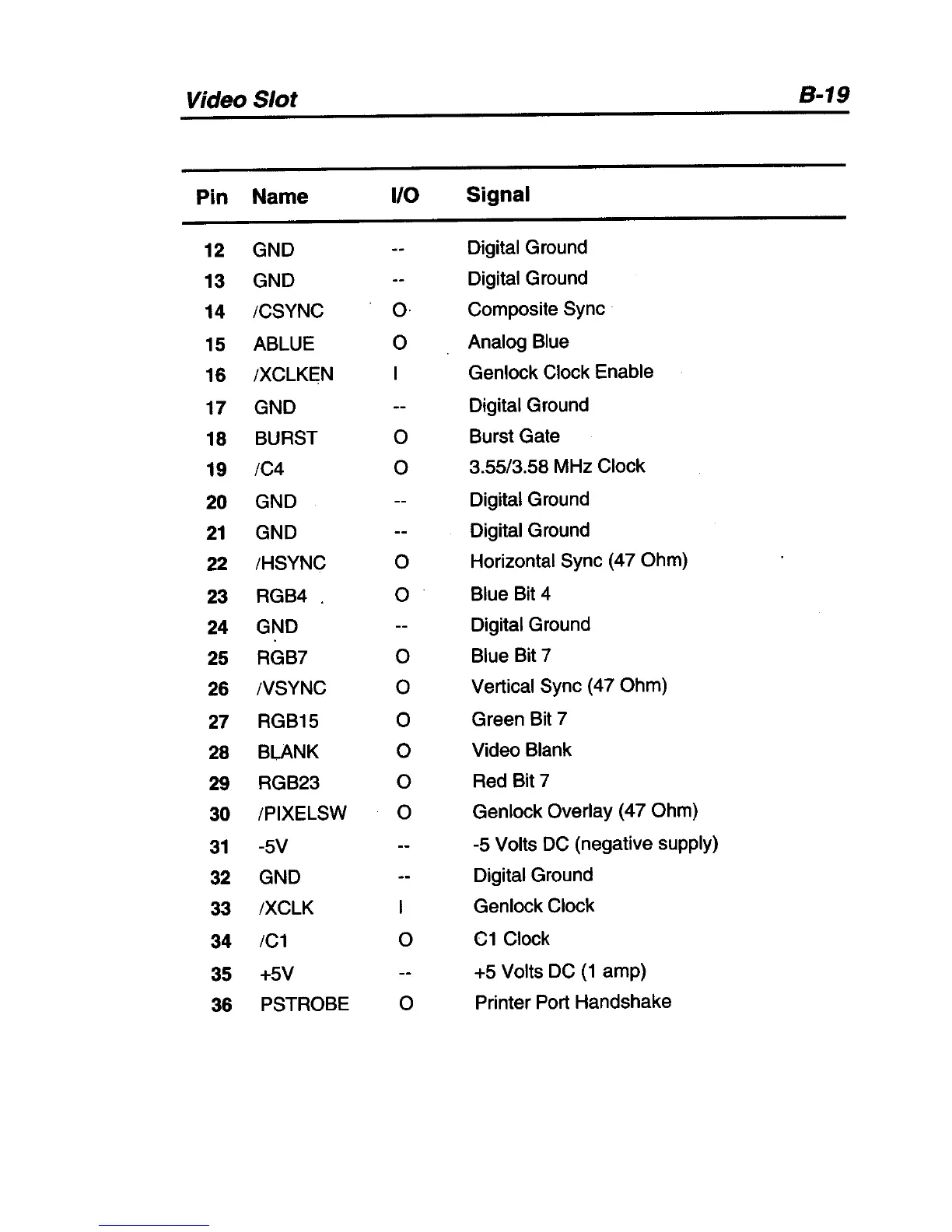

Video Slot
8-19
Pin Name
I/O
Signal
12 GND Digital Ground
13 GND Digital Ground
14 ICSYNC
O·
Composite Sync
15 ABLUE
0
Analog Blue
16 IXCLKEN Genlock Clock Enable
17 GND Digital Ground
18 BURST
0
Burst Gate
19
IC4
0
3.55/3.58 MHz Clock
20
GND
Digital Ground
21 GND Digital Ground
22
IHSYNC
0
Horizontal Sync (47 Ohm)
23 RGB4
0
Blue Bit 4
24
GND Digital Ground
25 RGB7
0
Blue Bit 7
26 IVSYNC
0
Vertical Sync (47 Ohm)
27 RGB15
0
Green Bit 7
28 BLANK
0
Video Blank
29 RGB23
0
Red Bit 7
30 IPIXELSW
0
Genlock Overlay (47 Ohm)
31 -5V -5 Volts DC (negative supply)
32 GND Digital Ground
33 IXCLK
I
Genlock Clock
34 IC1
0
C1 Clock
35 +5V +5 Volts DC (1 amp)
36
PSTROBE
0
Printer Port Handshake
