Amiga A4000 - Amiga Expansion Slots

8-14

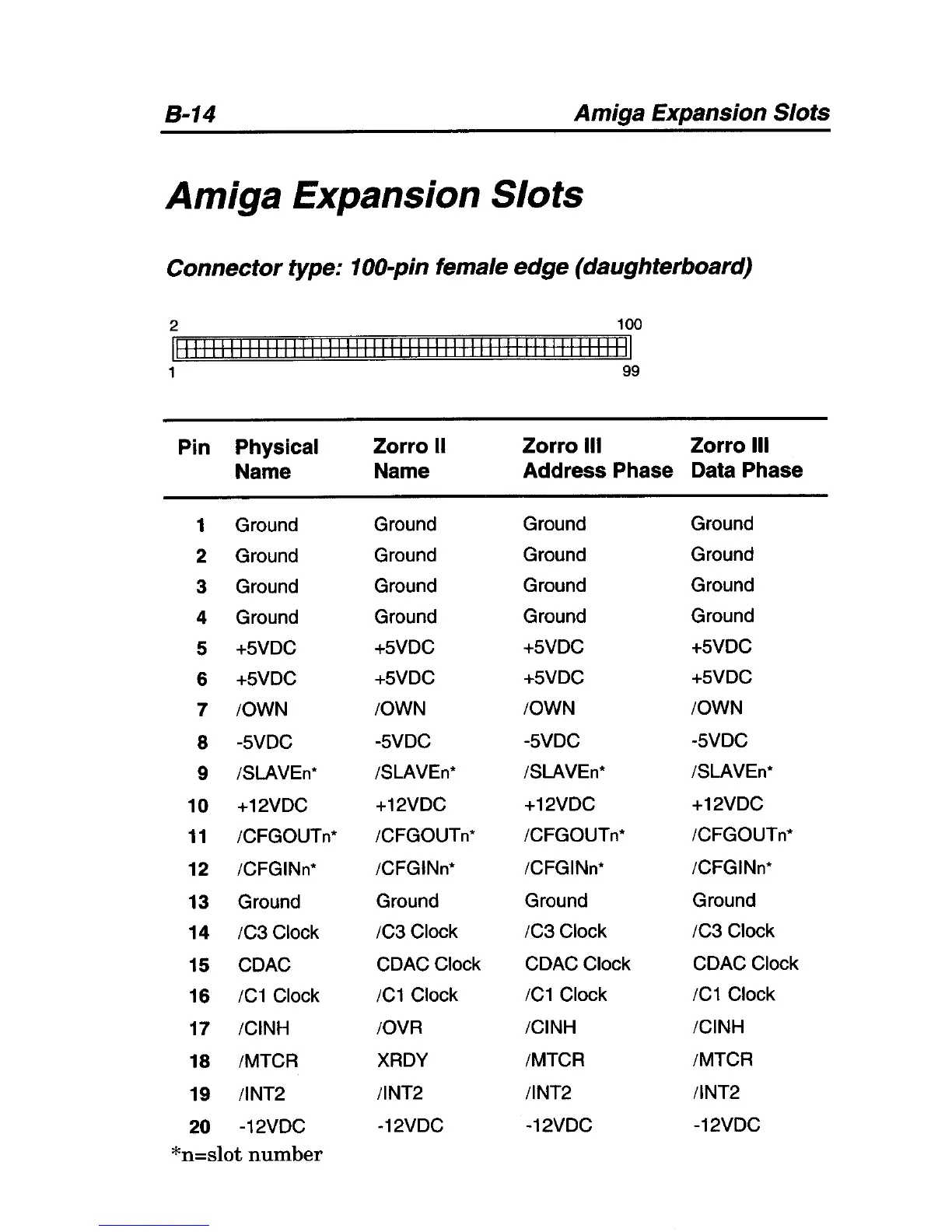

Amiga Expansion Slots
Amiga Expansion Slots
Connector type: 100-pin female edge (daughterboard)
2 100
11111111111111111111111111111111111111111111111111111
1
99
Pin
Physical Zorro
11 Zorro III
Zorro III
Name Name Address Phase
Data Phase
1
Ground Ground
Ground Ground
2
Ground Ground
Ground Ground
3
Ground Ground Ground
Ground
4
Ground Ground Ground
Ground
5
+5VDC +5VDC +5VDC
+5VDC
6 +5VDC
+5VDC +5VDC
+5VDC
7 IOWN
IOWN IOWN
IOWN
8
-5VDC
-5VDC -5VDC
-5VDC
9
ISLAVEn* ISLAVEn* ISLAVEn* ISLAVEn*
10 +12VDC +12VDC +12VDC +12VDC
11 ICFGOUTn*
ICFGOUTn* ICFGOUTn*
ICFGOUTn*
12
ICFGINn* ICFGINn* ICFGINn*
ICFGINn*
13
Ground Ground Ground
Ground
14 IC3 Clock IC3 Clock IC3 Clock IC3 Clock
15 CDAC
CDACClock
CDAC Clock CDAC Clock
16 IC1 Clock
IC1 Clock IC1 Clock
IC1 Clock
17
ICINH IOVR ICINH
ICINH
18
IMTCR
XRDY
IMTCR
IMTCR
19
IINT2
IINT2
IINT2
IINT2
20
-12VDC
-12VDC
-12VDC -12VDC
*n=slot number
