Front
Bay
Installation
6-3

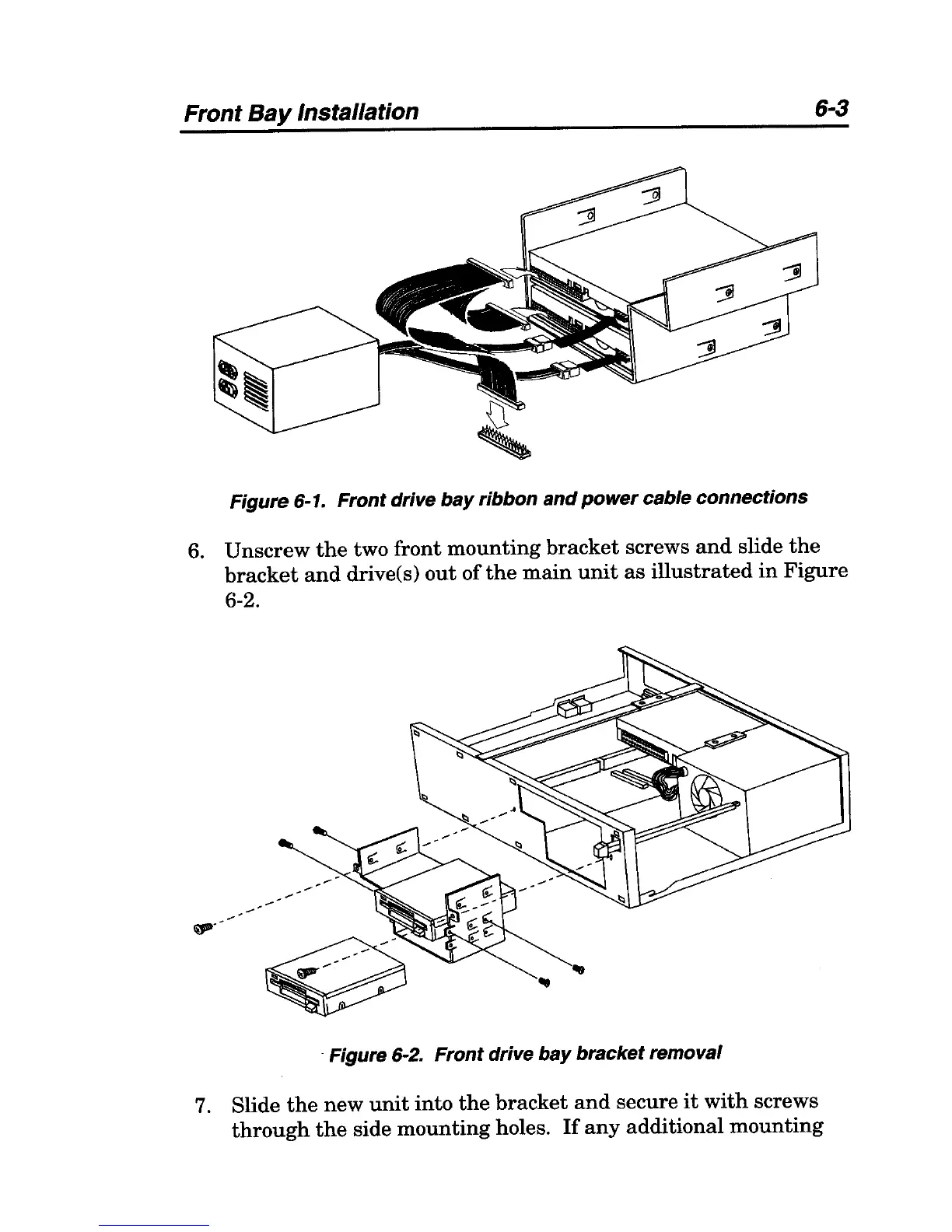

Figure 6-1. Front drive
bay
ribbon and
power
cable connections
6.
Unscrew
the
two front
mounting
bracket
screws
and
slide
the
bracket
and
driveCs)
out
of
the
main
unit
as
illustrated
in
Figure
6-2.
Figure 6-2. Front drive
bay
bracket removal
7.
Slide
the
new
unit
into
the
bracket
and
secure
it
with
screws
through
the
side
mounting
holes.
If
any
additional
mounting
