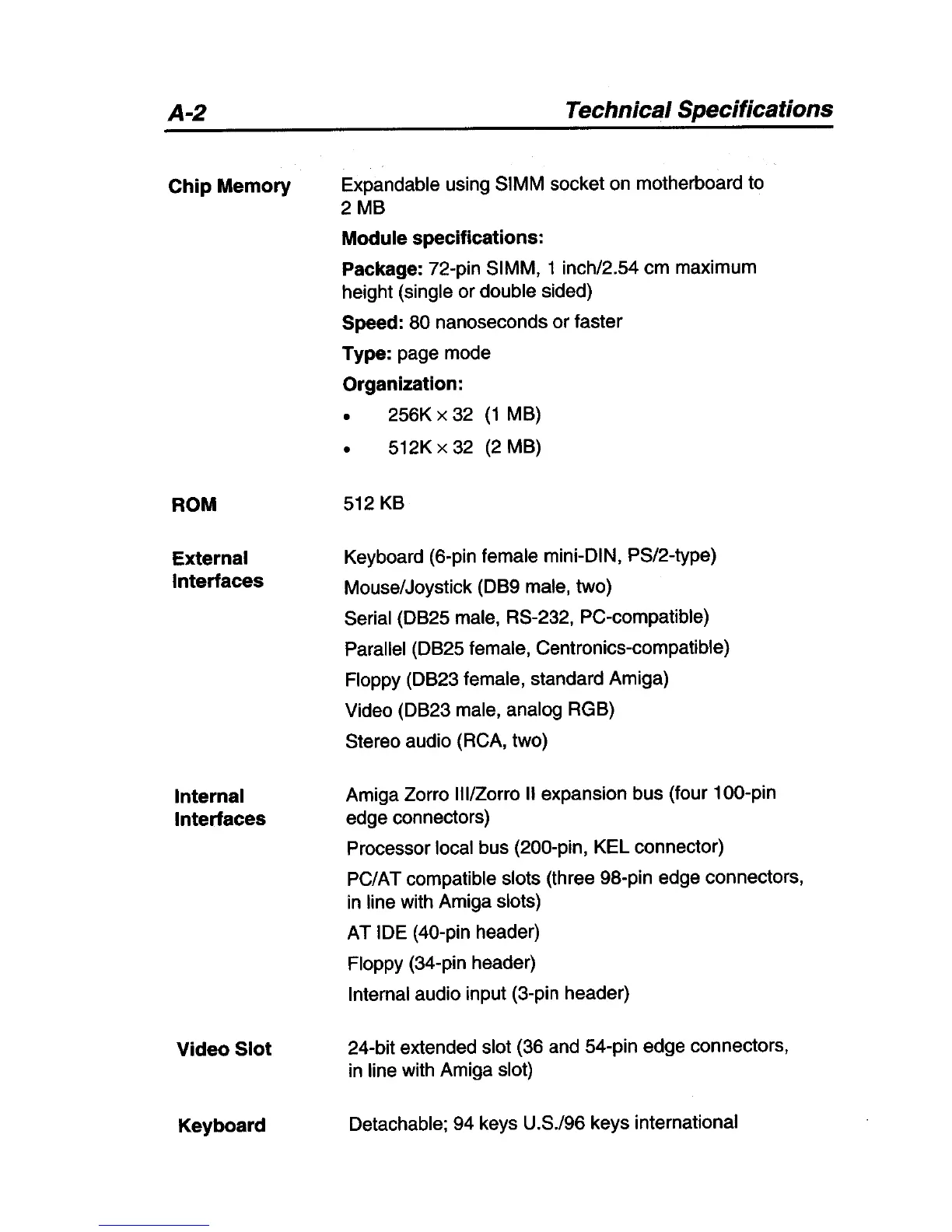

A-2
Chip
Memory
ROM
External
Interfaces
Internal
Interfaces
Video
Slot
Keyboard
Technical Specifications
Expandable using SIMM socket on motherboard to
2MB
Module
specifications:
Package: 72-pin SIMM, 1 inch/2.54 cm maximum
height (single or double sided)
Speed: 80 nanoseconds or faster
Type: page mode
Organization:
• 256K x 32
(1
MB)
• 512K x 32
(2
MB)
512 KB
Keyboard (6-pin female mini-DIN, PS/2-type)
Mouse/Joystick (DB9 male, two)
Serial (DB25 male, RS-232, PC-compatible)
Parallel (DB25 female, Centronics-compatible)
Floppy (DB23 female, standard Amiga)
Video (DB23 male, analog RGB)
Stereo audio (RCA, two)
Amiga Zorro IIllZorro
11
expansion bus (four 1
OD-pin
edge connectors)
Processor local bus (20D-pin, KEL connector)
PC/AT compatible slots (three 98-pin edge connectors,
in
line with Amiga slots)
AT IDE (40-pin header)
Floppy (34-pin header)
Internal audio input (3-pin header)
24-bit extended slot (36 and 54-pin edge connectors,
in line with Amiga slot)
Detachable; 94 keys U.S./96 keys international
