Amiga A4000 - Page 82

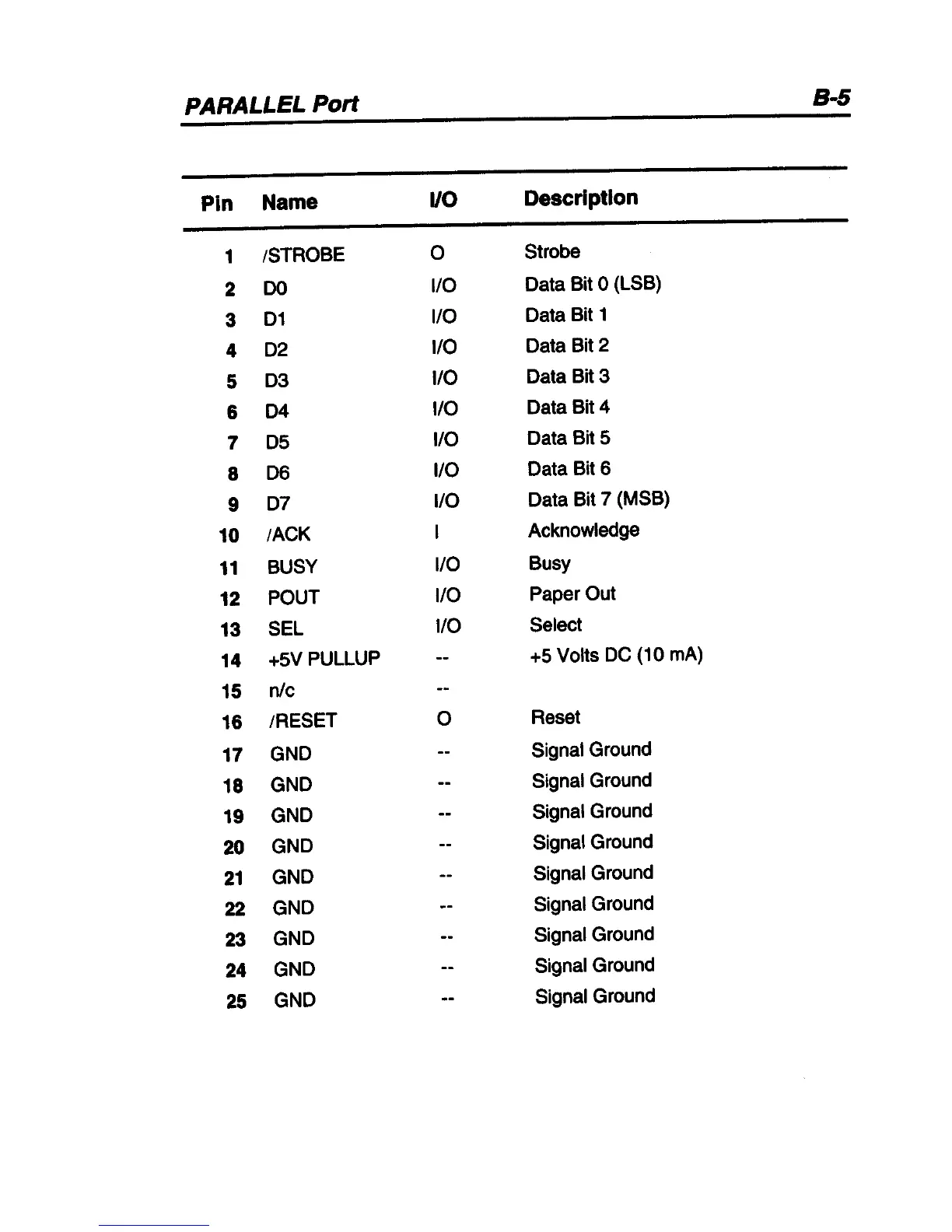

PARALLEL Port 8-5
Pin
Name I/O Description
1
ISTROBE 0 Strobe
2
DO 1/0
Data Bit 0 (LSB)
3
01
1/0
Data Bit 1
4
02 1/0 Data Bit 2
5
03 1/0
Data Bit 3
6
04
1/0
Data Bit 4
7 05 1/0
Data Bit 5
8
06
1/0 Data Bit 6
9
07 1/0 Data Bit 7 (MSB)
10
lACK
Acknowledge
11
BUSY 1/0 Busy
12
POUT I/O
Paper Out
13
SEL
1/0 Select
14
+5V PULLUP +5 Volts DC (10 mAl
15
nlc
16
IRESET 0
Reset
17
GND Signal Ground
18
GND
Signal Ground
19
GND Signal Ground
20
GND Signal Ground
21 GND
Signal Ground
22
GND Signal Ground
23
GND Signal Ground
24
GND Signal Ground
25
GND
Signal Ground
