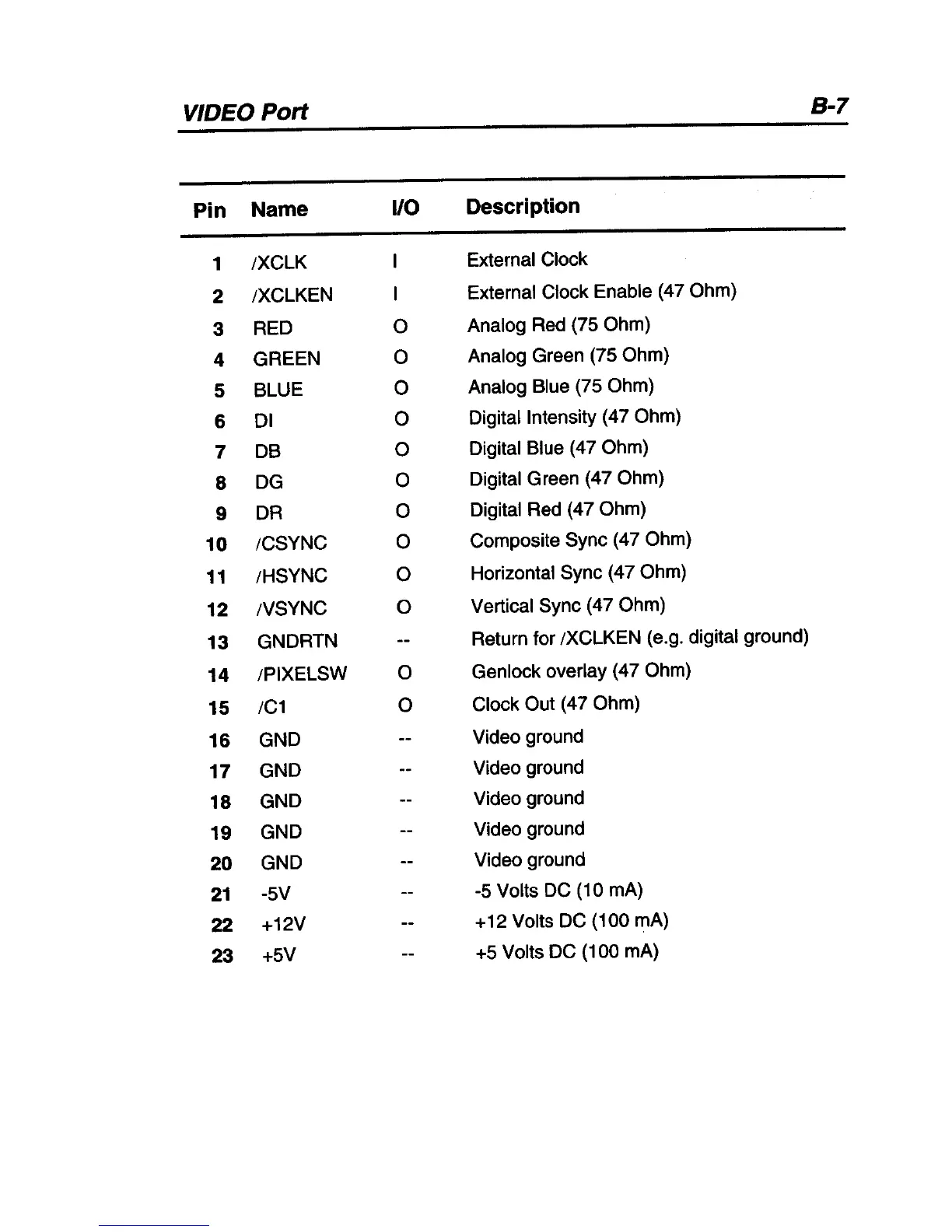

VIDEO Port
8-7
Pin
Name
110 Description
1
IXCLK External Clock
2
IXCLKEN I External Clock Enable (47 Ohm)
3
RED 0
Analog Red (75 Ohm)
4
GREEN 0
Analog Green (75 Ohm)
5
BLUE 0
Analog Blue (75 Ohm)
6
01 0
Digital Intensity (47 Ohm)
7
DB 0
Digital Blue (47 Ohm)
8
DG 0
Digital Green (47 Ohm)
9
OR 0
Digital Red (47 Ohm)
10
ICSYNC 0
Composite Sync (47 Ohm)
11
IHSYNC
0
Horizontal Sync (47 Ohm)
12 NSYNC
0 Vertical Sync (47 Ohm)
13
GNDRTN Return for IXCLKEN (e.g. digital ground)
14
IPIXELSW 0 Genlock overlay (47 Ohm)
15
IC1 0 Clock Out (47 Ohm)
16
GND Video ground
17
GND Video ground
18
GND
Video ground
19
GND
Video ground
20
GND
Video ground
21
-5V -5 Volts DC (10 mA)
22 +12V
+ 12 Volts DC (100 mA)
23 +5V
+5 Volts DC (100 mA)
