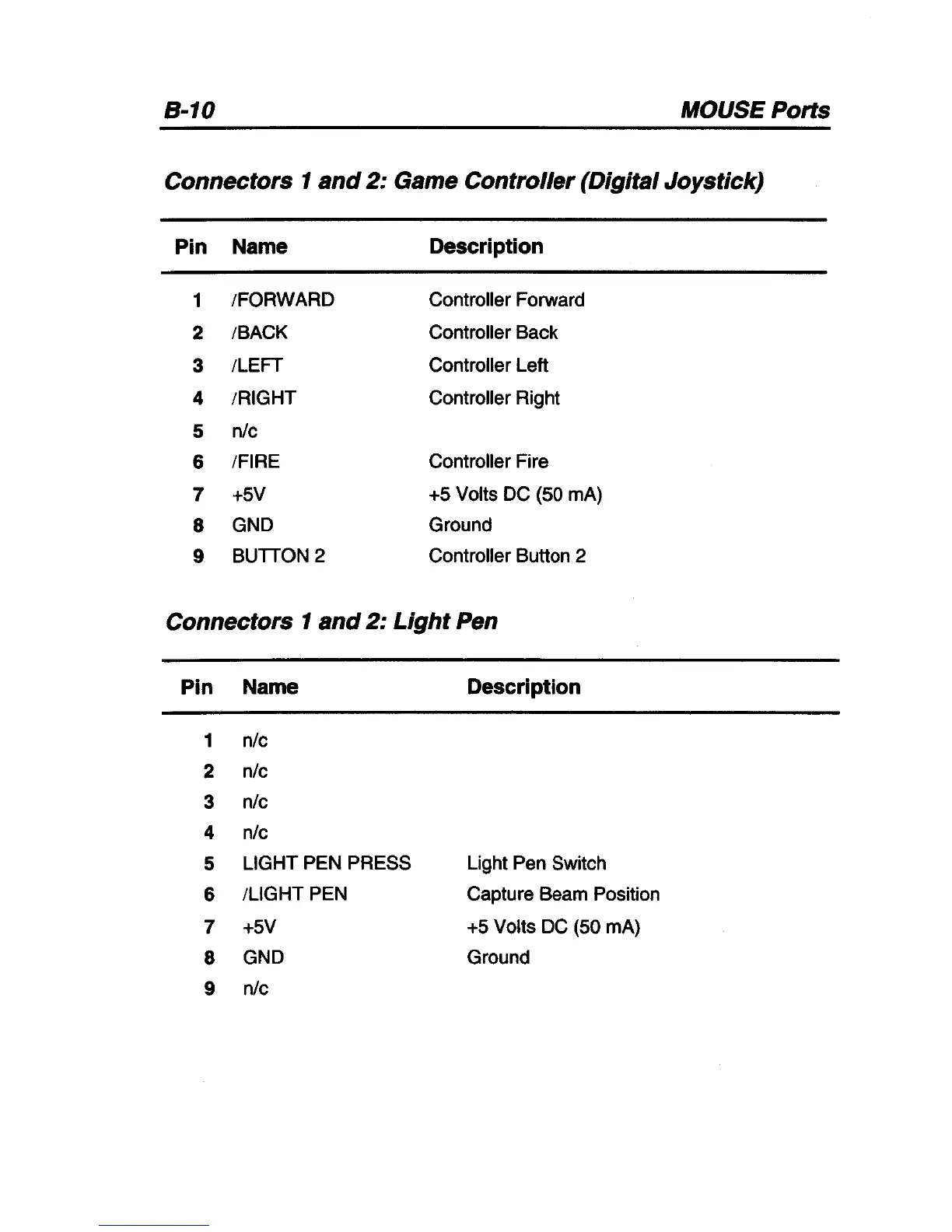

8-10 MOUSE Ports
Connectors 1 and 2: Game Controller (Digital Joystick)
Pin Name
Description
1
fFORWARD
Controller Forward
2
fBACK Controller Back
3
fLEFT
Controller Left
4
fRIGHT Controller Right
5
nlc
6
fFIRE
Controller Fire
7
+5V
+5 Volts DC (50 mA)
8
GND Ground
9
BUTTON 2 Controller Button 2
Connectors 1 and 2: Light Pen
Pin
1
2
3
4
5
6
7
8
9
Name
n/c
n/c
n/c
n/c
LIGHT PEN PRESS
fLIGHT PEN
+5V
GND
n/c
Description
Light Pen Switch
Capture Beam Position
+5 Volts DC (50 mA)
Ground
