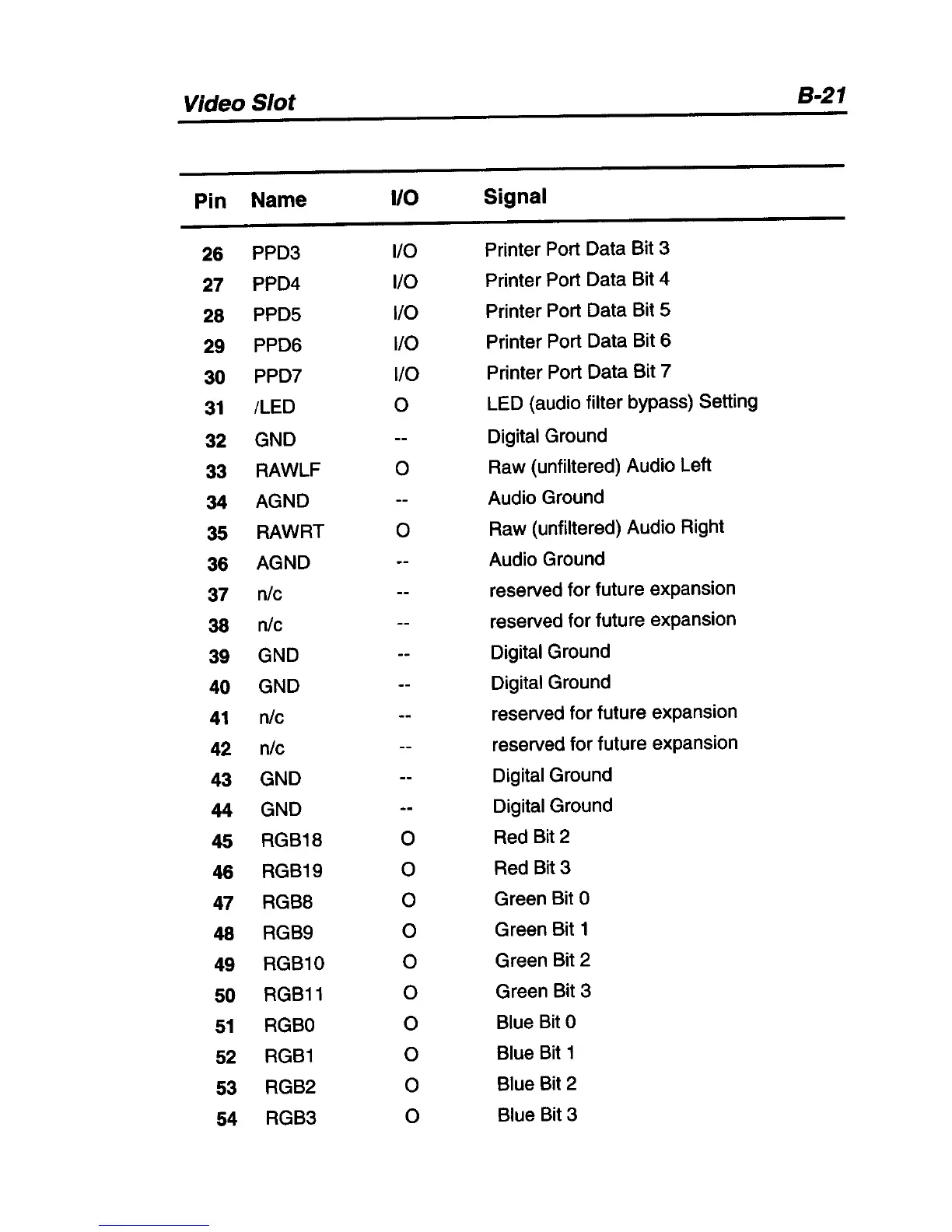

Video Slot 8-21
Pin
Name
I/O
Signal
26 PPD3 1/0 Printer Port Data Bit 3
27 PPD4 1/0 Printer Port Data Bit 4
28
PPD5 1/0 Printer Port Data Bit 5
29
PPD6 I/O
Printer Port Data Bit 6
30
PPD7 I/O
Printer Port Data Bit 7
31
flED
0
lED (audio filter bypass) Setting
32
GND
Digital Ground
33
RAWlF
0
Raw (unfiltered) Audio left
34
AGND
Audio Ground
35
RAWRT
0
Raw (unfiltered) Audio Right
36
AGND
Audio Ground
37
nle reserved for future expansion
38
nle reserved for future expansion
39
GND Digital Ground
40
GND Digital Ground
41 nle
reserved for future expansion
42 nle reserved for future expansion
43
GND Digital Ground
44
GND Digital Ground
45 RGB18
0
Red Bit 2
46 RGB19
0
Red Bit 3
47 RGB8
0
Green Bit 0
48 RGB9
0
Green Bit 1
49 RGB10
0
Green Bit 2
50
RGB11
0
Green Bit 3
51
RGBO
0
Blue Bit 0
52 RGB1 0
Blue Bit 1
53
RGB2
0
Blue Bit 2
54
RGB3
0
Blue Bit 3
