Air Unit (Transmitter)

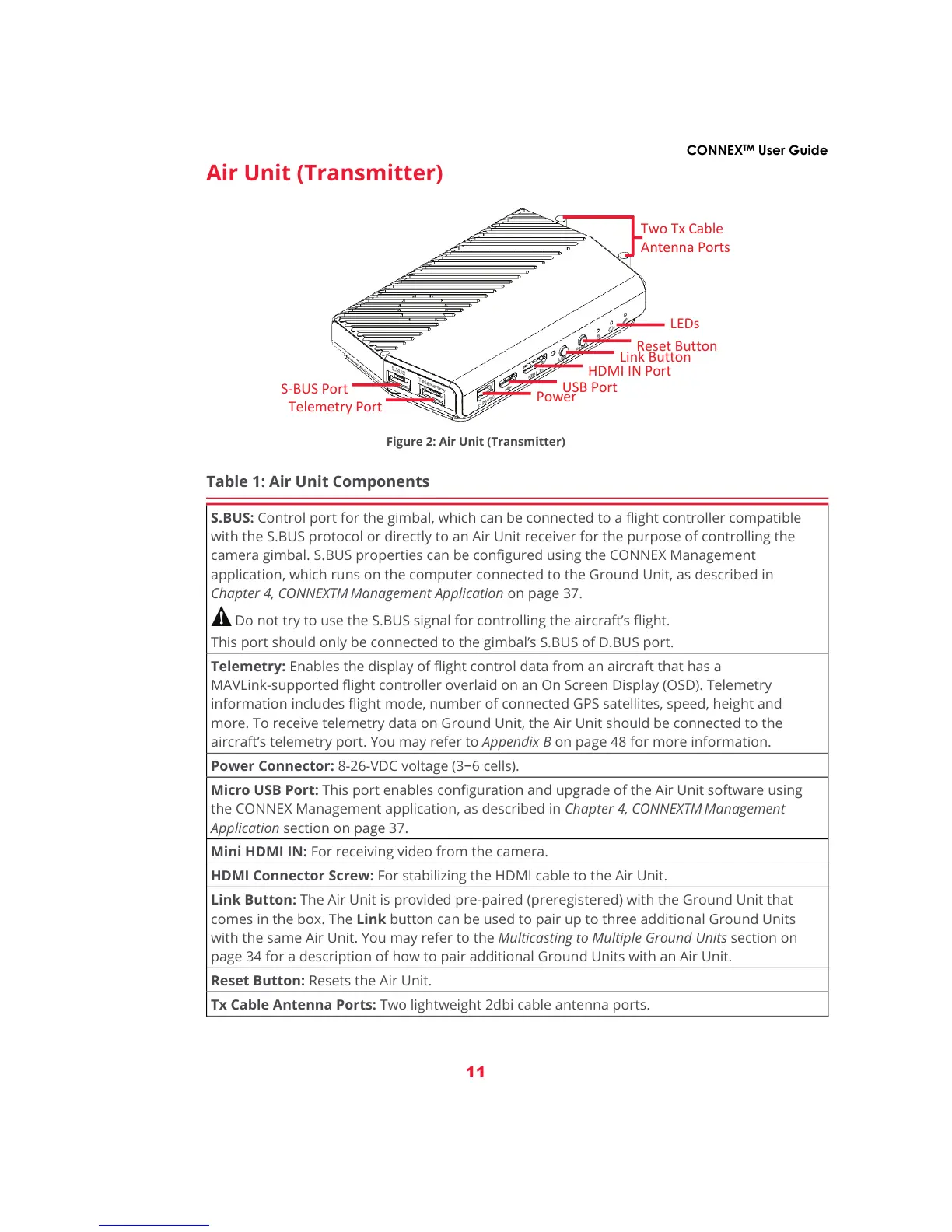

Figure 2: Air Unit (Transmitter)
Table 1: Air Unit Components
S.BUS: Control port for the gimbal, which can be connected to a flight controller compatible
with the S.BUS protocol or directly to an Air Unit receiver for the purpose of controlling the
camera gimbal. S.BUS properties can be configured using the CONNEX Management
application, which runs on the computer connected to the Ground Unit, as described in
Chapter 4, CONNEXTM
Management Application on page 37.
Do not try to use the S.BUS signal for controlling the aircraft’s flight.
This port should only be connected to the gimbal’s S.BUS of D.BUS port.
Telemetry: Enables the display of flight control data from an aircraft that has a
MAVLink-supported flight controller overlaid on an On Screen Display (OSD). Telemetry
information includes flight mode, number of connected GPS satellites, speed, height and
more. To receive telemetry data on Ground Unit, the Air Unit should be connected to the
aircraft’s telemetry port. You may refer to Appendix B on page 48 for more information.
Power Connector: 8-26-VDC voltage (3−6 cells).
Micro USB Port: This port enables configuration and upgrade of the Air Unit software using
the CONNEX Management application, as described in Chapter 4, CONNEXTM
Management
Application section on page 37.
Mini HDMI IN: For receiving video from the camera.
HDMI Connector Screw: For stabilizing the HDMI cable to the Air Unit.
Link Button: The Air Unit is provided pre-paired (preregistered) with the Ground Unit that
comes in the box. The Link button can be used to pair up to three additional Ground Units
with the same Air Unit. You may refer to the Multicasting to Multiple Ground Units section on
page 34 for a description of how to pair additional Ground Units with an Air Unit.
Reset Button: Resets the Air Unit.
Tx Cable Antenna Ports: Two lightweight 2dbi cable antenna ports.
Reset Button
USB Port
HDMI IN Port
Two Tx Cable
Antenna Ports
Power
Link Button
LEDs
S-BUS Port
