Additional Telemetry Information Overlaid on Video
Additional telemetry information can be overlaid on the video received from the
aircraft’s flight controller. This information appears in a black strip on the top of the
video, as shown below:

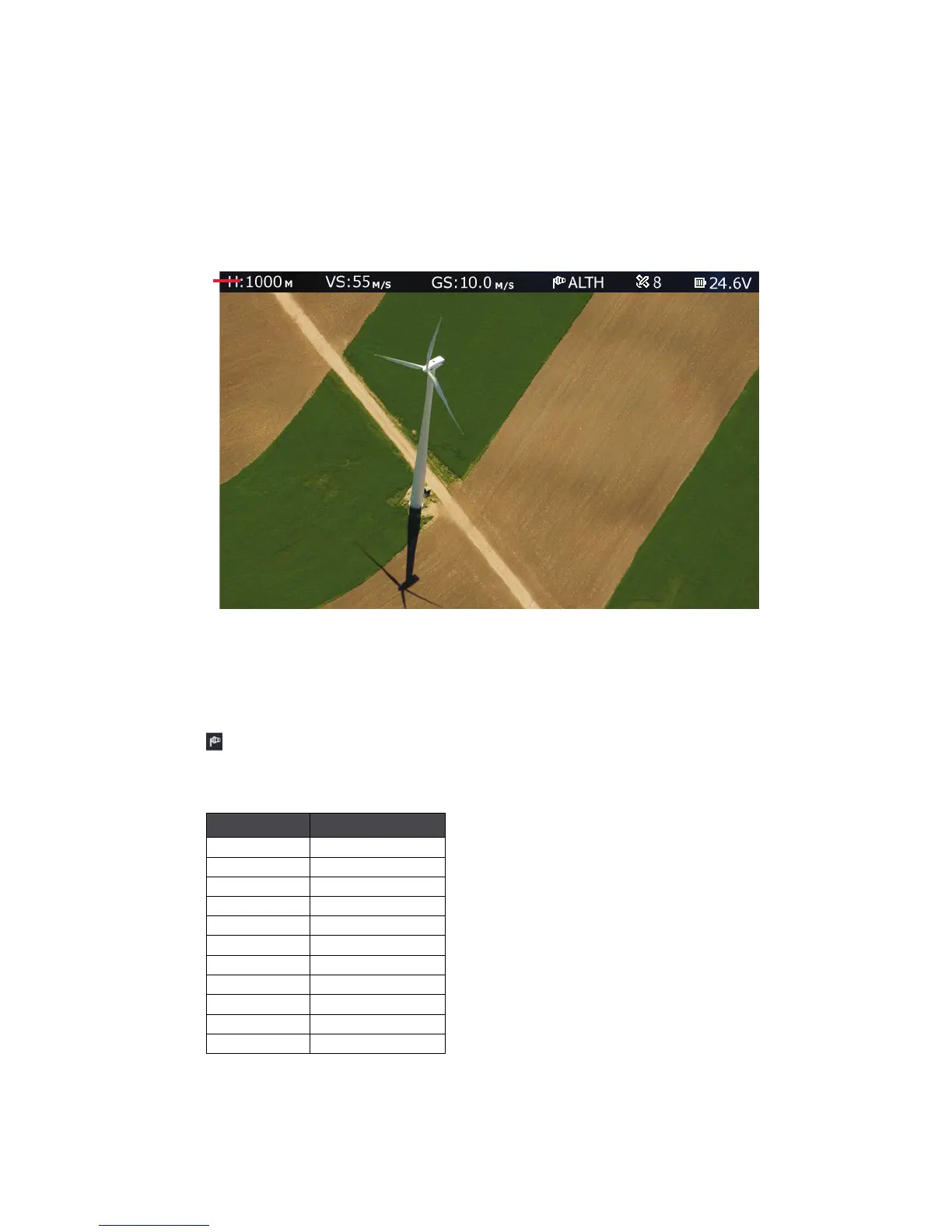

Figure 32: OSD View – With Additional Telemetry Information
H: Aircraft Height.
VS: Vertical Speed.
GS: Ground Speed.
: Flight Mode. The following standard 4-character Arducopter flight modes may be
displayed:
Table 9: Flight Modes
Flight Mode Description
STBL Stabilize
ARCO Arco
ALTH Alt Hold
AUTO Auto
GUID Guided
LOIT Loiter
RTL RTL
CIRC Circle
POS
Position
LAND Land
DRFT Drift
Telemetry
information
overlay on
video
