CONNEX
TM
User Guide
15
Ground Unit (Receiver)

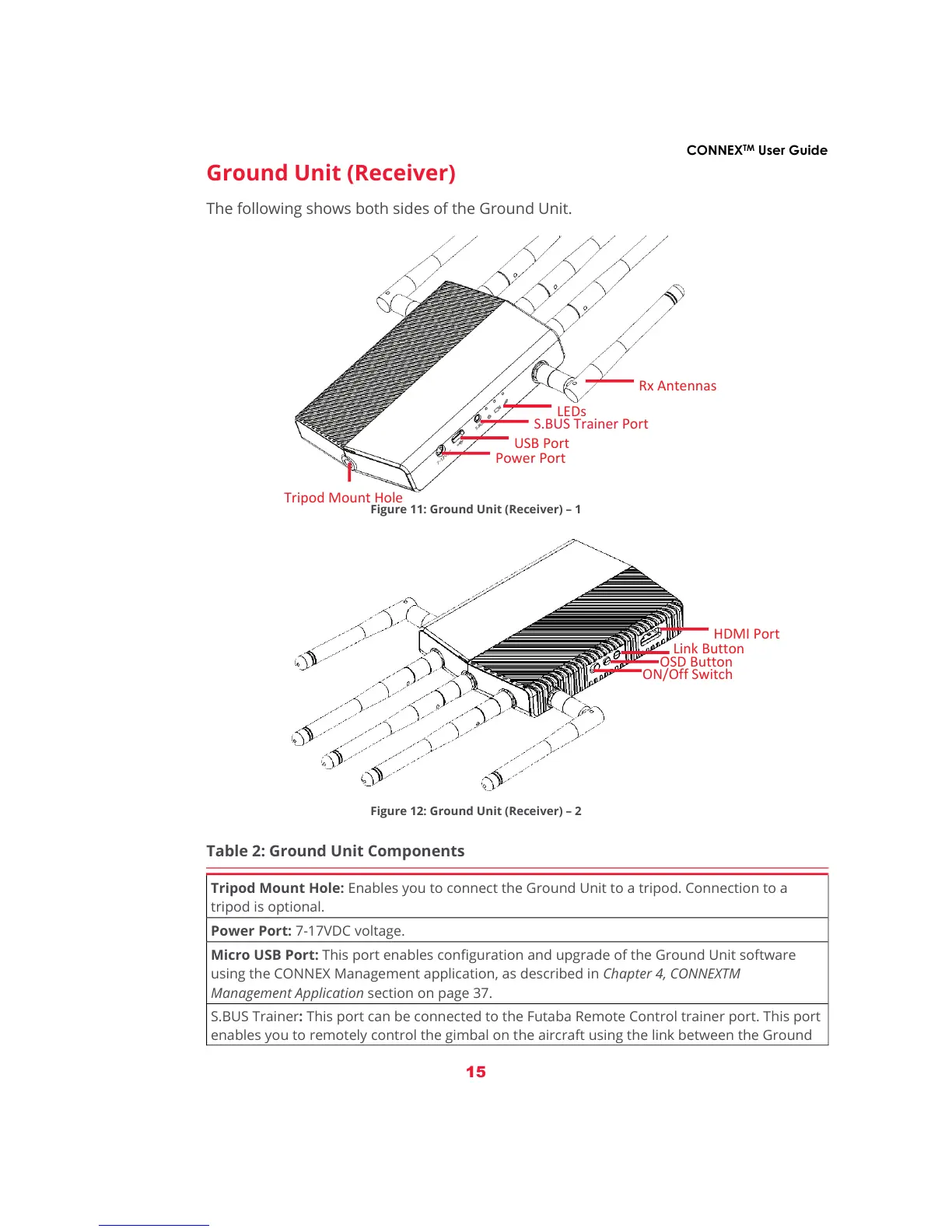

The following shows both sides of the Ground Unit.
Figure 11: Ground Unit (Receiver) – 1
Figure 12: Ground Unit (Receiver) – 2
Table 2: Ground Unit Components
Tripod Mount Hole: Enables you to connect the Ground Unit to a tripod. Connection to a
tripod is optional.
Power Port: 7-17VDC voltage.
Micro USB Port: This port enables configuration and upgrade of the Ground Unit software
using the CONNEX Management application, as described in Chapter 4, CONNEXTM
Management Application section on page 37.
S.BUS Trainer: This port can be connected to the Futaba Remote Control trainer port. This port
enables you to remotely control the gimbal on the aircraft using the link between the Ground
Power Port
USB Port
S.BUS Trainer Port
Tripod Mount Hole
LEDs
Rx Antennas
ON/Off Switch
OSD Button
Link Button
HDMI Port
