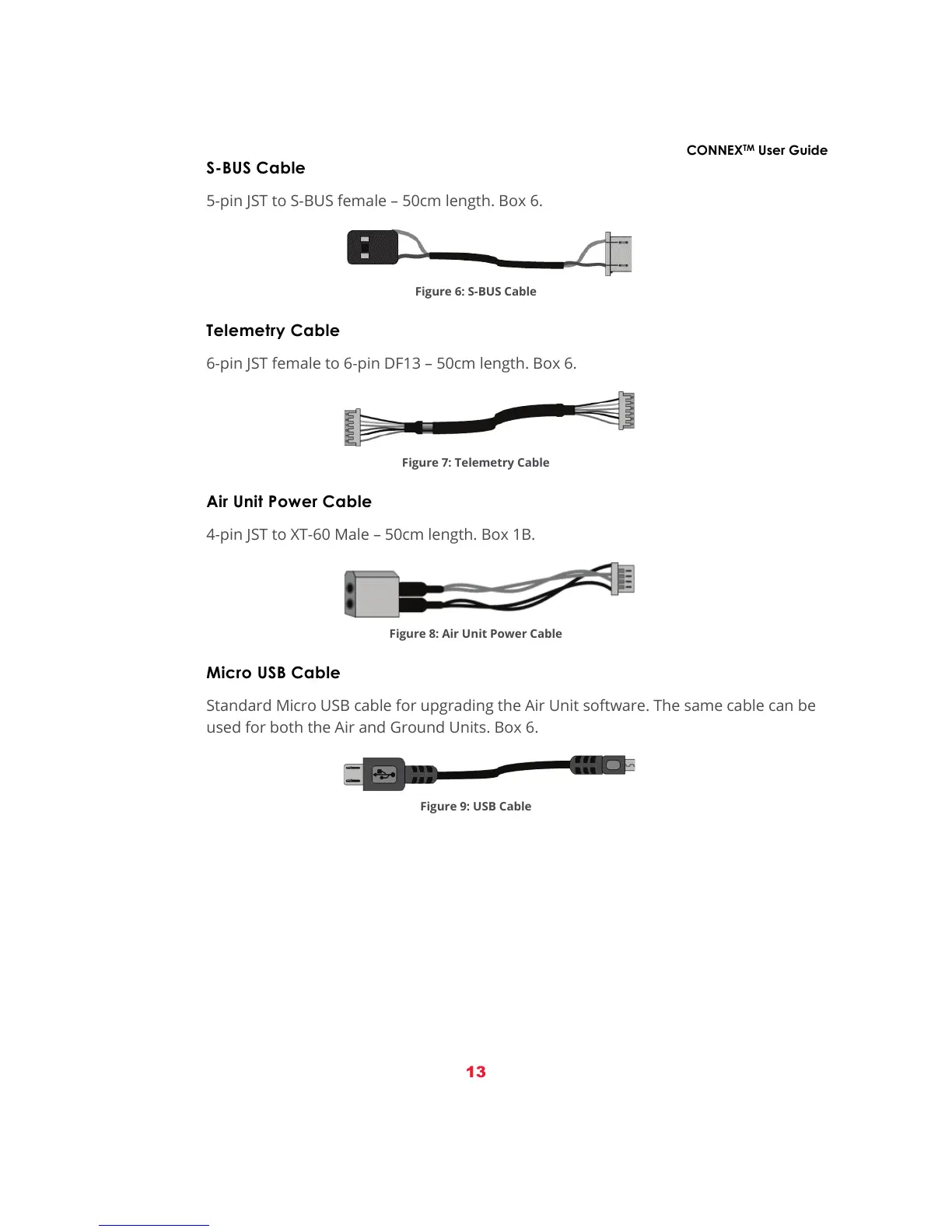

S-BUS Cable
5-pin JST to S-BUS female – 50cm length. Box 6.
Figure 6: S-BUS Cable
Telemetry Cable
6-pin JST female to 6-pin DF13 – 50cm length. Box 6.
Figure 7: Telemetry Cable
Air Unit Power Cable
4-pin JST to XT-60 Male – 50cm length. Box 1B.
Figure 8: Air Unit Power Cable
Micro USB Cable
Standard Micro USB cable for upgrading the Air Unit software. The same cable can be
used for both the Air and Ground Units. Box 6.
Figure 9: USB Cable
