CONNEX
TM
User Guide
17

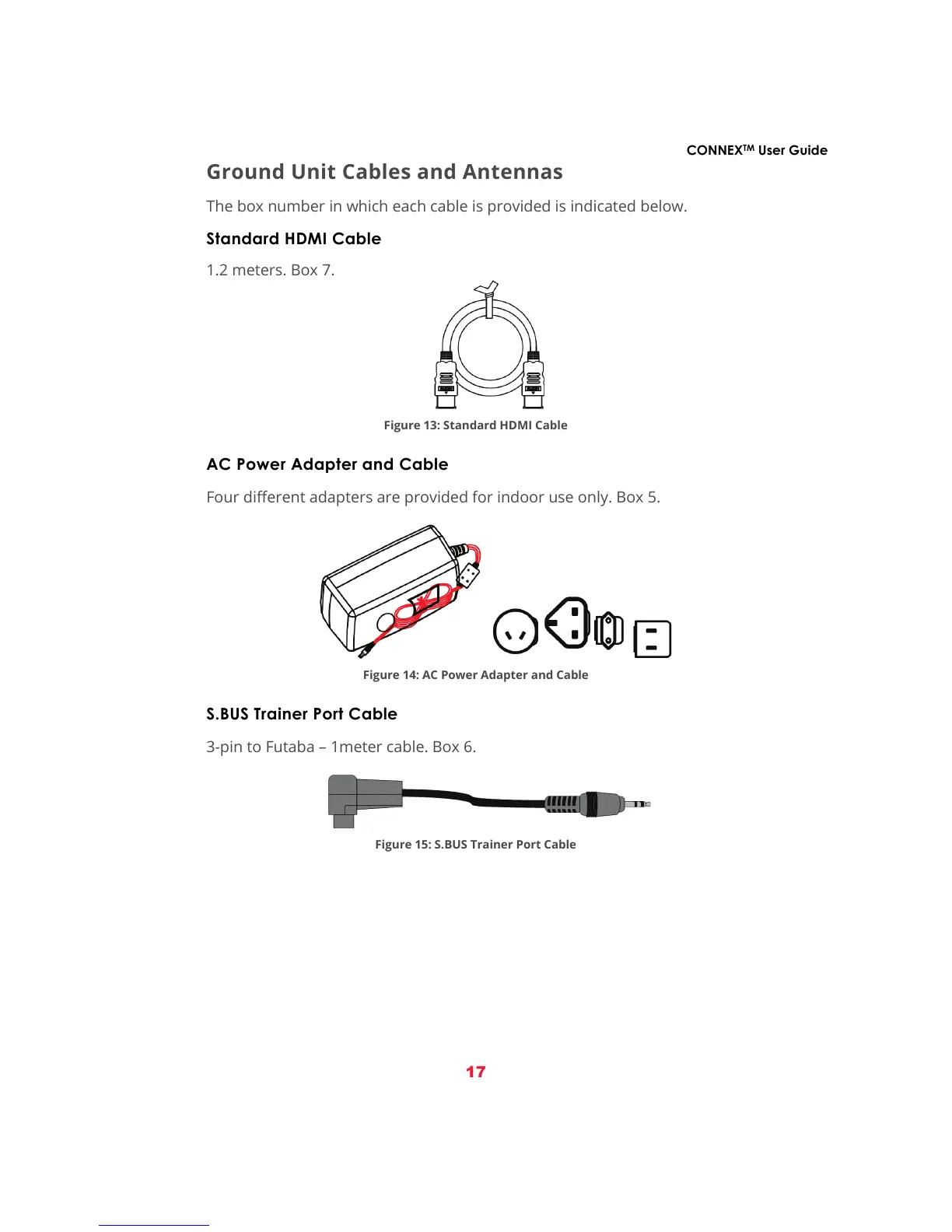

Ground Unit Cables and Antennas
The box number in which each cable is provided is indicated below.
Standard HDMI Cable
1.2 meters. Box 7.
Figure 13: Standard HDMI Cable
AC Power Adapter and Cable
Four different adapters are provided for indoor use only. Box 5.
Figure 14: AC Power Adapter and Cable
S.BUS Trainer Port Cable
3-pin to Futaba – 1meter cable. Box 6.
Figure 15: S.BUS Trainer Port Cable
