44 ARR1575
1
2
3
4
555058
1
2
3
4
555059

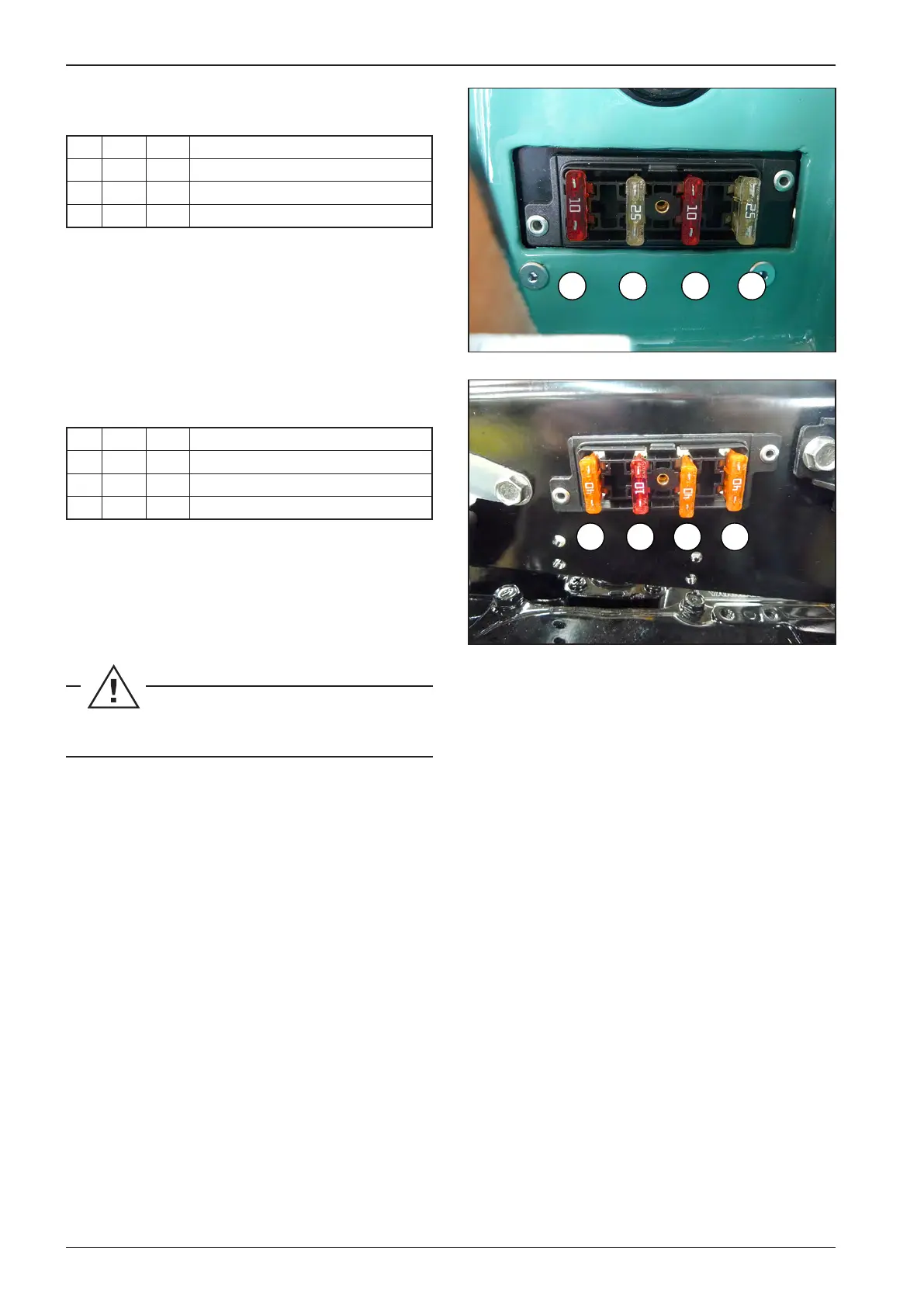

2.6. Actuators and dashboard instruments
Cockpit fuses
The fuses are located under the cowling in the cockpit
1 F11 10 A Controller, power supply
2 F12 25 A Controller, outputs
3 F13 10 A Display unit, shutdown bar
4 F14 25 A Hydraulic oil cooler
Engine compartment fuses
The fuses are located above the diesel engine.
1 F21 40 A Pull-in solenoid
2 F22 10 A Diesel pump, alternator
3 F23 40 A Operating speed
4 F24 40 A Pre-heating coil
Replace fuses only with fuses of identical value!!!
