Ammann ARR 1575 Yanmar - Loading the Machine Using a Crane

78 ARR1575
1233029
WLL
3527 lb
1600 kg
15°
<
-
65°
<
-
30°
<
-
<
-
75°
LC
5511 lb
2500 kg
α
α
β
β
2.8. How to transport the Machine
2.8.1.2. Loading the machine using a crane

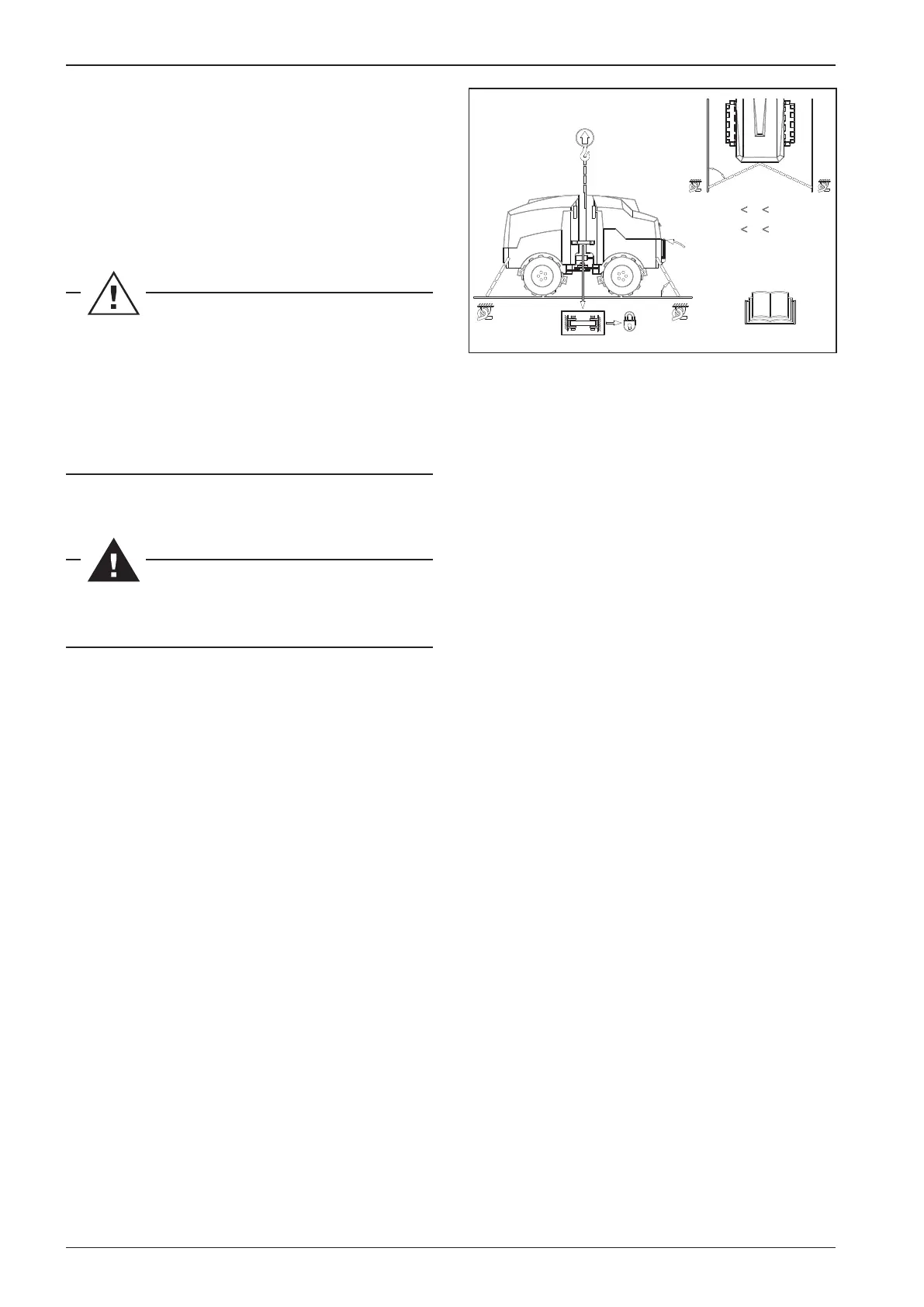

• When loading with crane the Machine is tted with lifting
lugs - refer to the Fig. showing the lifting method.
• The 1-point lifting eye is designed for a WLL of 1.6 tons
(Working Load Limit).
• When lifting the Machine the Machine’s joint shall be se-
cured against turning.
Before lifting , make sure all screws on the 1-point lifting
eye are damage free and securely tightened. There must
not be any cracks or deformations on the one-point lift-
ing eye.
When loading and unloading the machine, it is neces-
sary to observe the provisions of ISO 12480-1 and to use
slings under EN 1492-4+A1.
Pay increased attention when loading the machine.
Improper handling can cause serious injury or death.
