OPERATION MANUAL

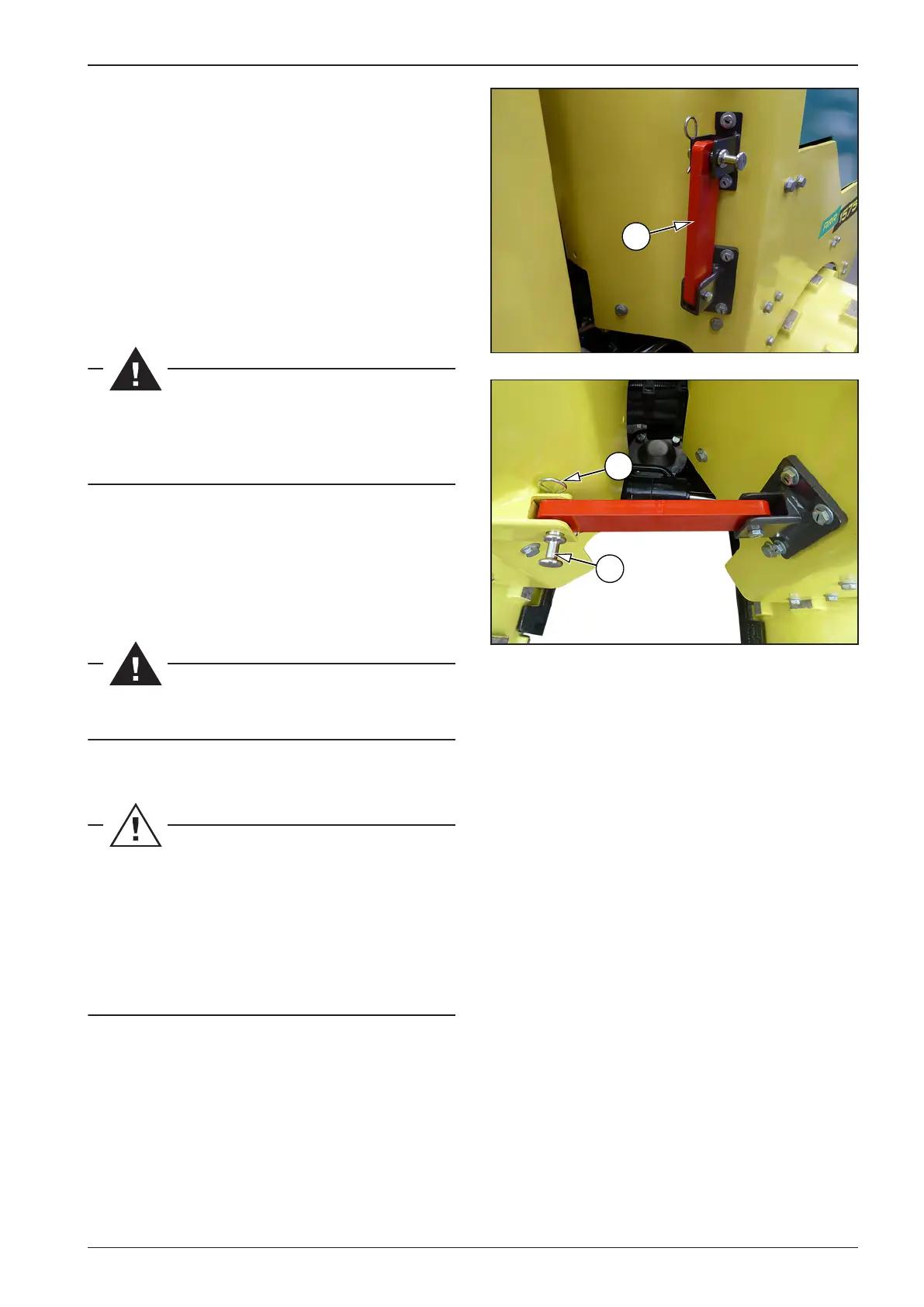

How to secure the joint:
• Release the lower part of the joint protection (1).
• First, remove the compression spring (2) and then the lock
bolt (3).
• Carefully turn the machine steering until the joint protecti-
on comes in line with the opposite loop.
• Now steer to the left all the way to the stop.
Note:
In order to operate the steering, you must start the machine and
maintain a distance of at least 2 meters.
Risk of crushing through presence in the pivoting area
(danger zone)!
As soon as the machine is aligned, shut if o again.
• Hook the joint protection into place.
• Secure the joint protection with the lock bolt (3).
• Secure the lock bolt with the compression spring (2).
DoNOT enter the area under the lifted load!
Upon loading completion, please return the safety arm
and cotters to their initial position.
Use corresponding, undamaged riggings of sucient
loading capacity.
To sling, please use only the lifting lugs on the Machine
designed for that purpose.
Only atrained slinger may carry out the slinging.
