2.10. Optional equipment
2.10.1. Shutdown bar
• The shutdown bar is located on the rear of the machine un-
der the operating unit. A proximity switch is located on the
rear section of the machine above the attachment point of
the shutdown bar. If the machine moves against an obstacle
with the shutdown bar, the shutdown bar is actuated and
triggers the proximity switch. This sends a signal to the ma-
chine controller and the machine can now only be moved
forward away from the obstacle. If the vibration function is
running, it will be shut down. The vibration function must
be restarted manually after the shutdown bar has been de-
activated.
• During transport, the shutdown bar must be secured with a
strap in the transport position.

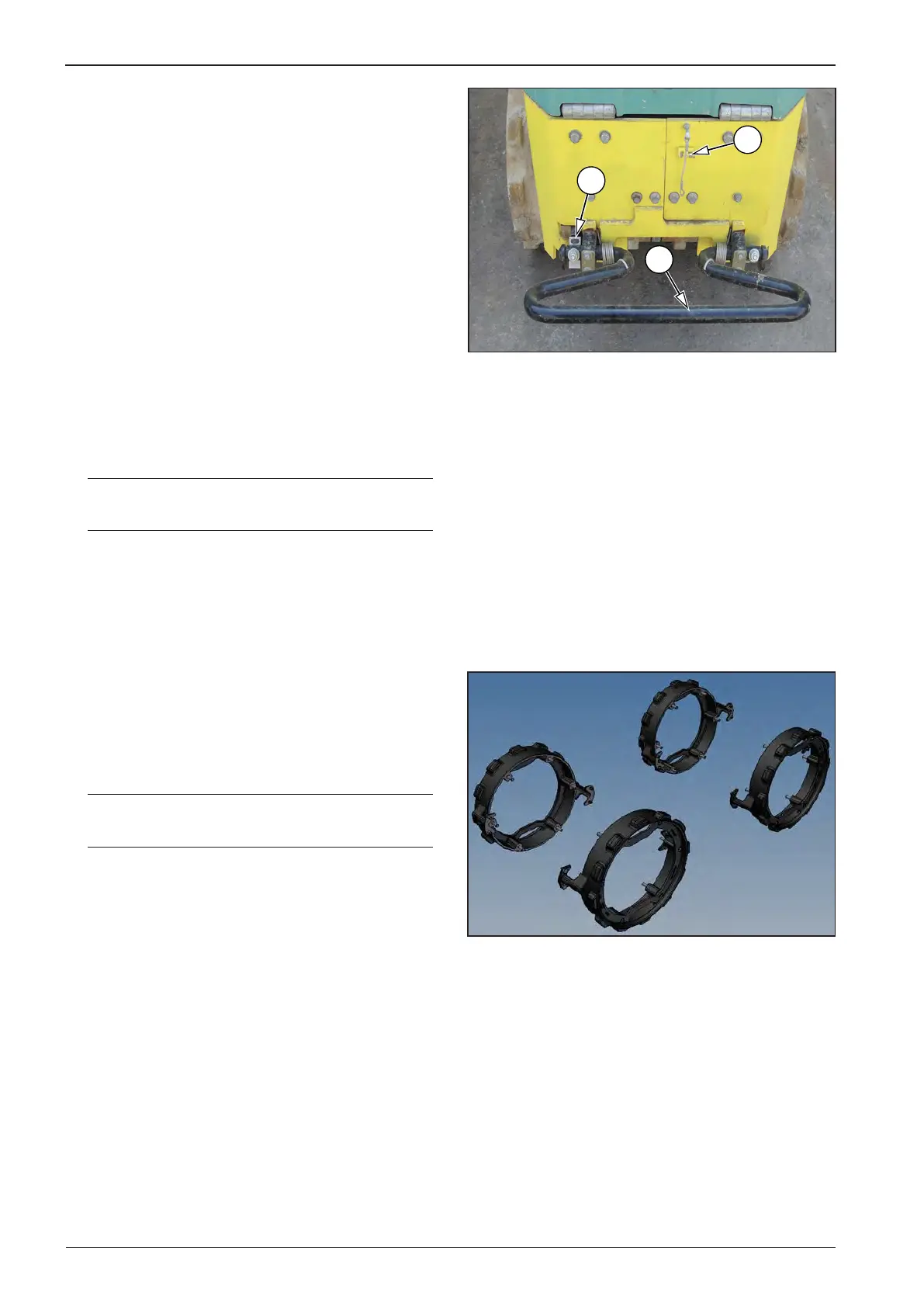

1 - Shutdown bar
2 - Point for securing the safety bar by a belt
3 - Proximity switch
Shutdown bar
Order number: 1241609
2.10.2. Drum extension set
• The drum extension set can be ordered for drum width of
640 mm. The extension increases the width of drums to
850mm.
Drum extension set
Order number: 4-760100
