7. Place the spare suction cup in the bag of the cover.
8. Place the backing plate in the covered compartment bag.
9. Load the User's Guide into the pocket.
10. Close the carrying case.

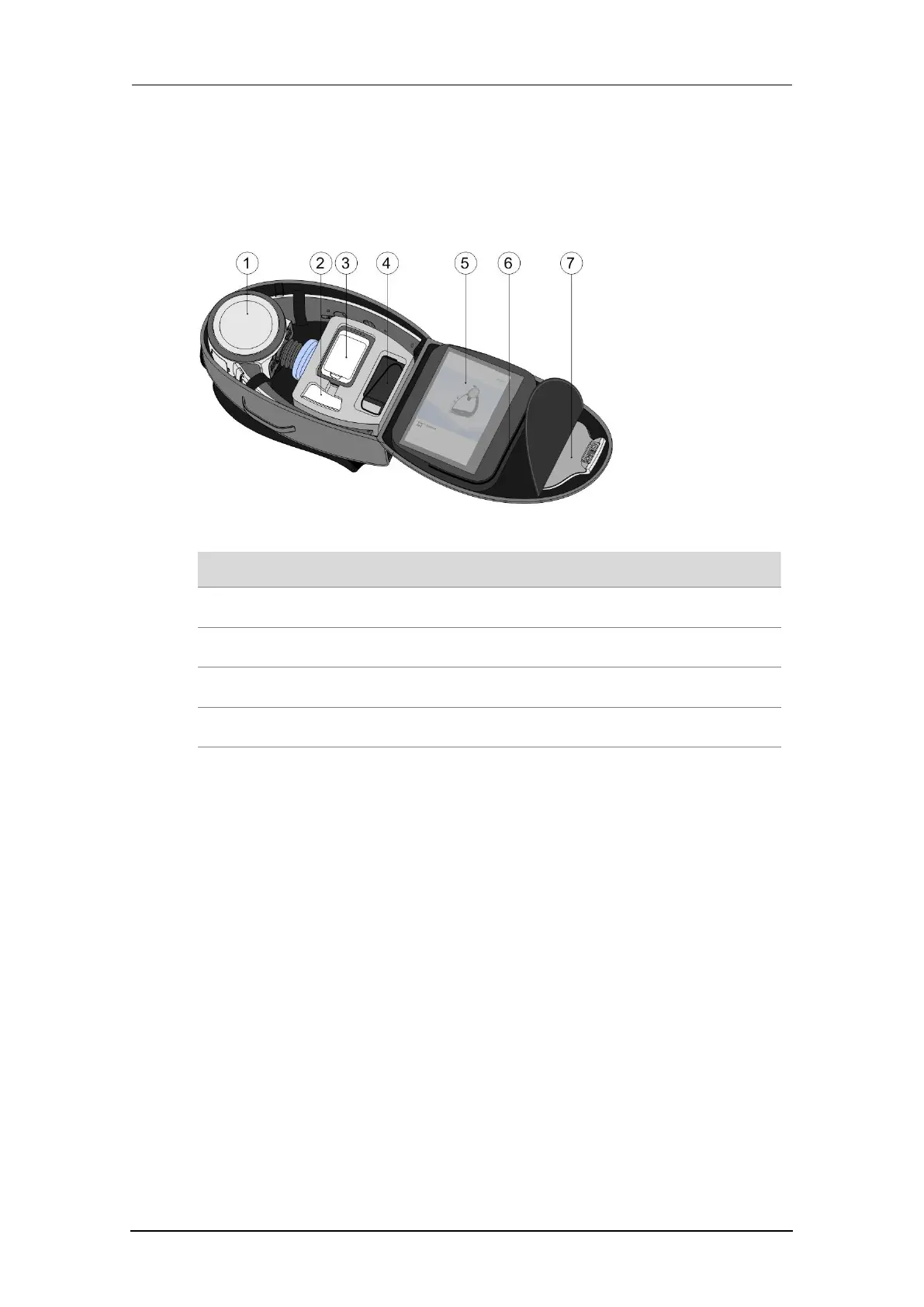

Fig. 16 Carrying case
3 Charging base 4 Adapter
4.2 Battery installation
The lithium polymer battery is a dedicated power supply for the E6. You can
remove the battery from the E6 and charge it.
The E6 and battery in the battery charger are mechanically keyed to ensure
they are properly installed. The top of the battery has a power connector and
a communication port to the battery charger and E6. (As shown below)
