Amoul E6 - EtCO2 Installation (Optional)

H-1.601.00149-2.0
Page
23

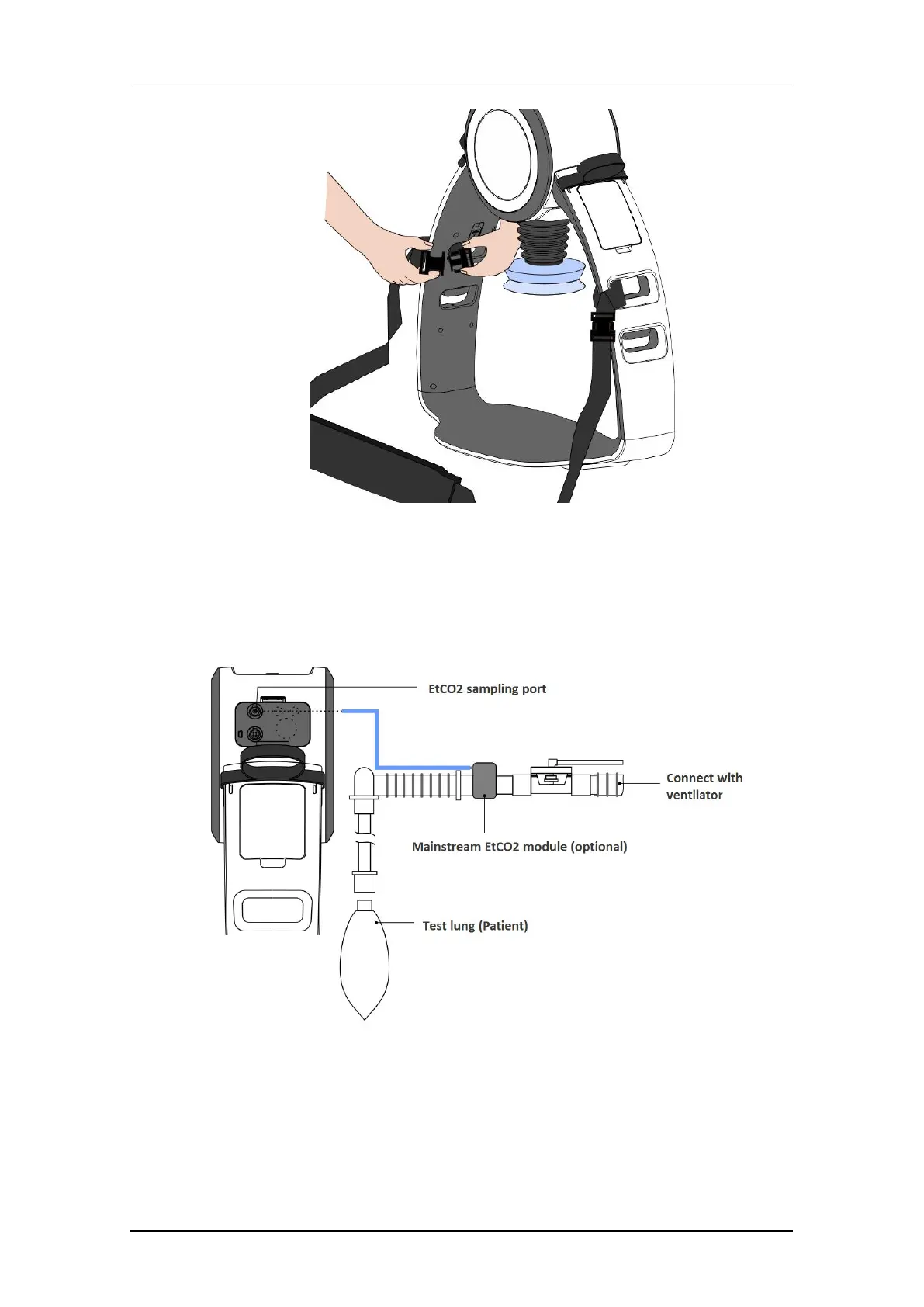

Fig. 19 Stabilizing belt install
4.5 EtCO
2
install (optional)
If an optional EtCO2 module is available, it can be connected to the
corresponding breathing circuit as shown below.
Fig. 20 EtCO2 install
