B104: Motor Frequency (Hz)
B105: Motor Speed (rpm)
B106: Motor Output (kW)
B107: Motor Poles
Automatic tuning will automatically change the parameters B202~B211, so it is recommended to write
down the values set in B202~211.
When using the close-loop vector control mode, input the correct PPR for the encoder in B109. Refer
Chapter-10 for the encoder specifications and wiring method.
Motor direction definition:
With the Axpert-Eazy, the counter clockwise rotation (CCW) looking from the motor shaft is defined as
forward run, and clockwise rotation (CW) is defined as reverse run.
Forward run (CCW) Reverse run (CW)

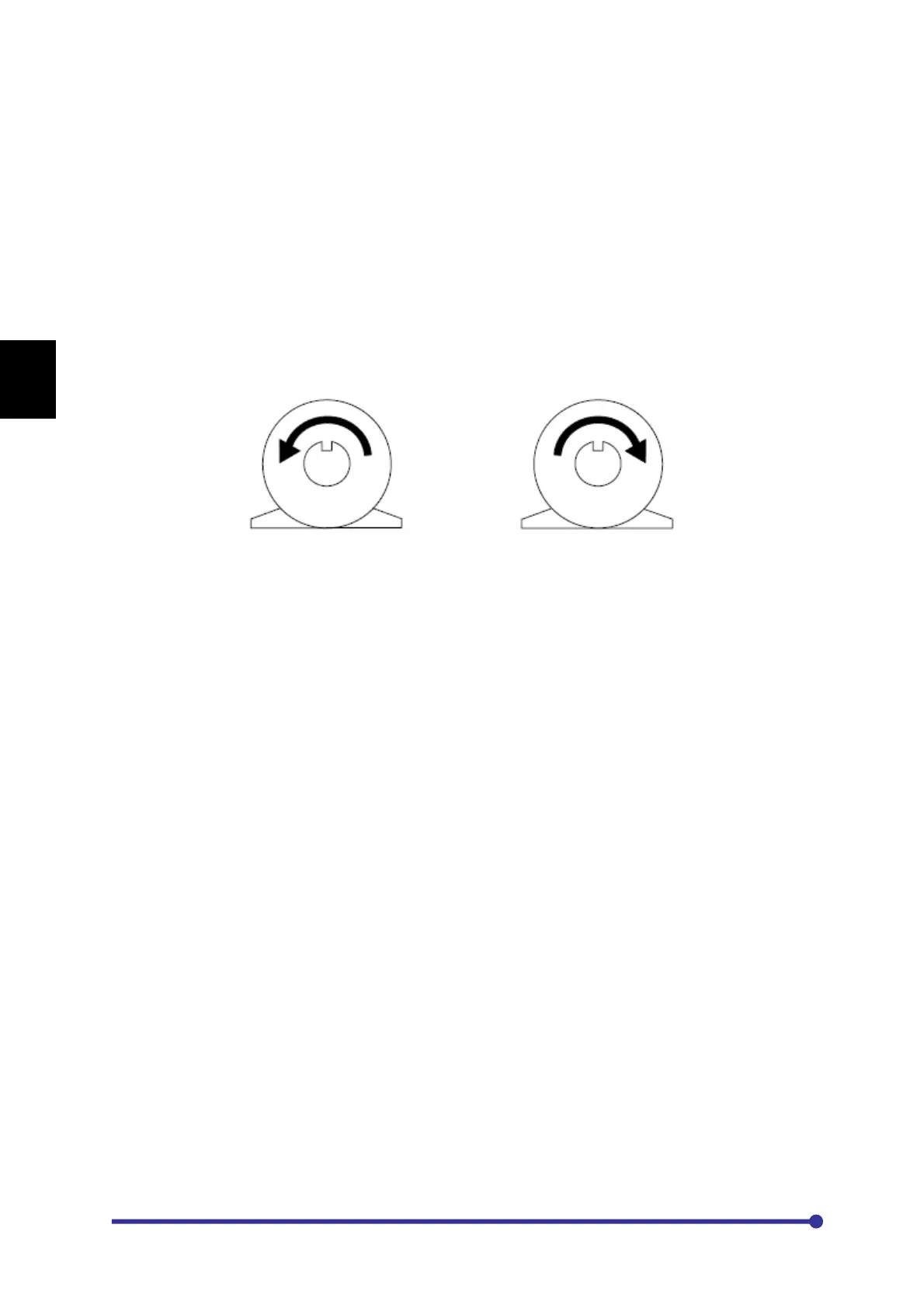

Definition of motor rotation direction
