Amtech Axpert-Eazy Series - Page 33

Axpert-Eazy AC Variable Frequency Drive
4.5
4
Freq Command
A106
=1: Local =2: FSV 0-10V
=3: FSI 4-20mA
Digital Operation Panel
(A101)
Analog Voltage
Reference (FSV)
=4: FSV 0-5V =5: FSI 0-20mA =6: FSV 10-0V =7: FSI 20-4mA =8: FSV 5-0V =9: FSI 20-0mA =10: Static pot
Freq Increase
(PSI)
=11: Serial
Serial
=12: PID Output
Internal signal (PID Output)
Analog Current
Reference (FSI)
Freq Decrease
(PSI)
Preset i/p-0
(PSI)
Preset i/p-1
Preset i/p-2
(PSI)
Off On
Preset i/p-1
(PSI)
Preset i/p-2
(PSI)
Preset i/p-2
(PSI)
B404 B401 B405 B403 B407
On
On
On
On
On
Off
Off
Off
Off
Off
Preset i/p-2
(PSI)
B402 B406
On Off
RUN
A104
Jog Select
On OffOn
Off
Ref Select 0 (PSI)
Ref Select 1 (PSI)
Serial
FSI 4-20mA
On Off
Ref Select 1 (PSI)
Static Pot
A106
=1: Local =2: Terminal
Host PC
=3: Serial
RUN
(Terminal)
A301
Run
Operational Panel
(Keypad)
RUN Command
RUN has higher priority then Jog

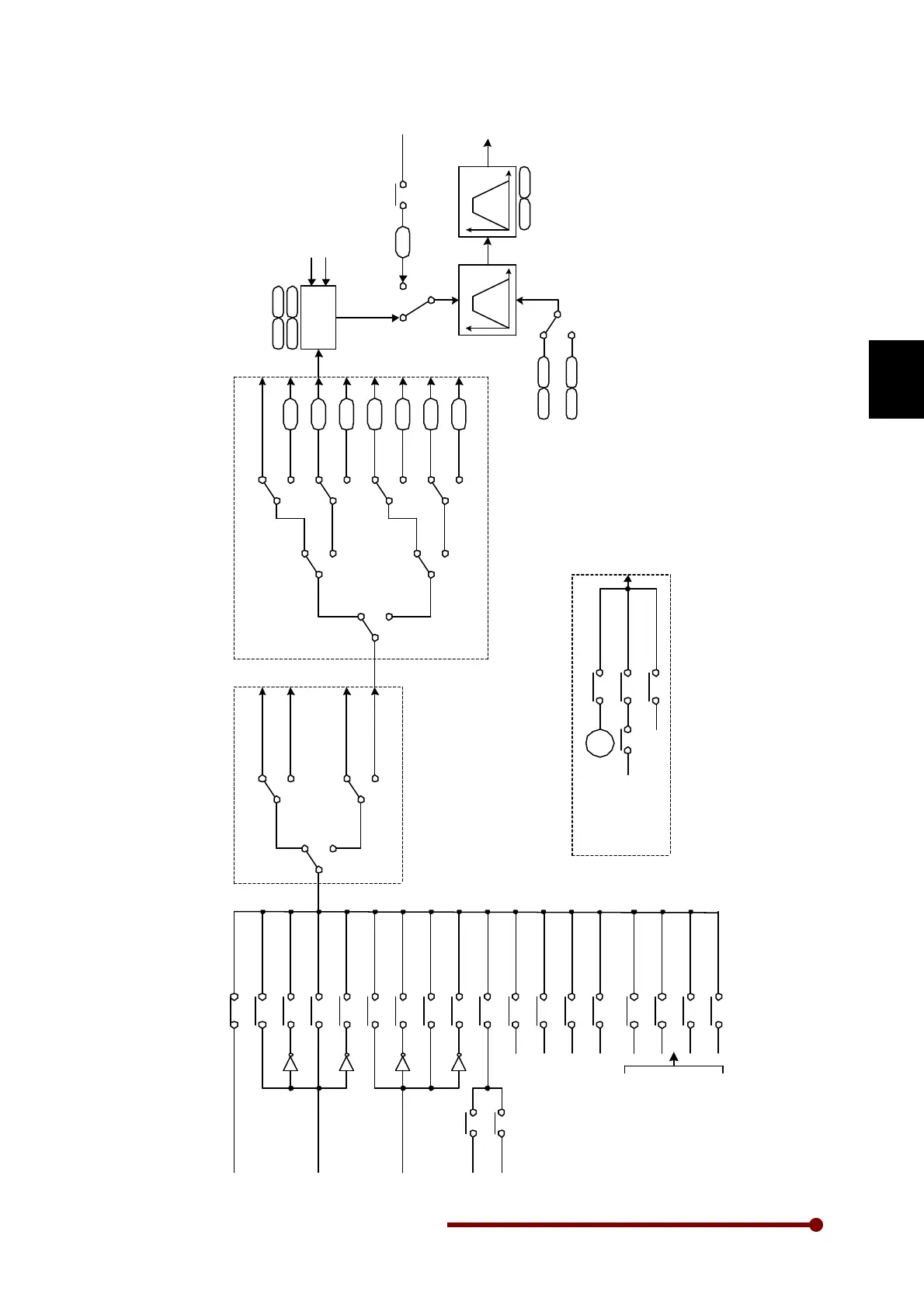

Selection process of Frequence Reference Signal
Math
Operation
Block
A701 A703 A704 A705
JOG
A201 A202
Ramp
Ramp Select
On Off
A203 A204
Freq Limiter
A102 A103
A706: Variable Bias A702: Math Input2
=13: VIN 0-10V =14: IIN 4-20mA
Analog Voltage Reference
(VIN)
Analog Current Reference
(IIN)
=15: PLC A-O/P 1
Built in PLC Analog Ref.
=16: PLC A-O/P 2 =17: PLC A-O/P 3 =18: PLC A-O/P 4
