Novara 3000 Series ControlPads Instruction Manual

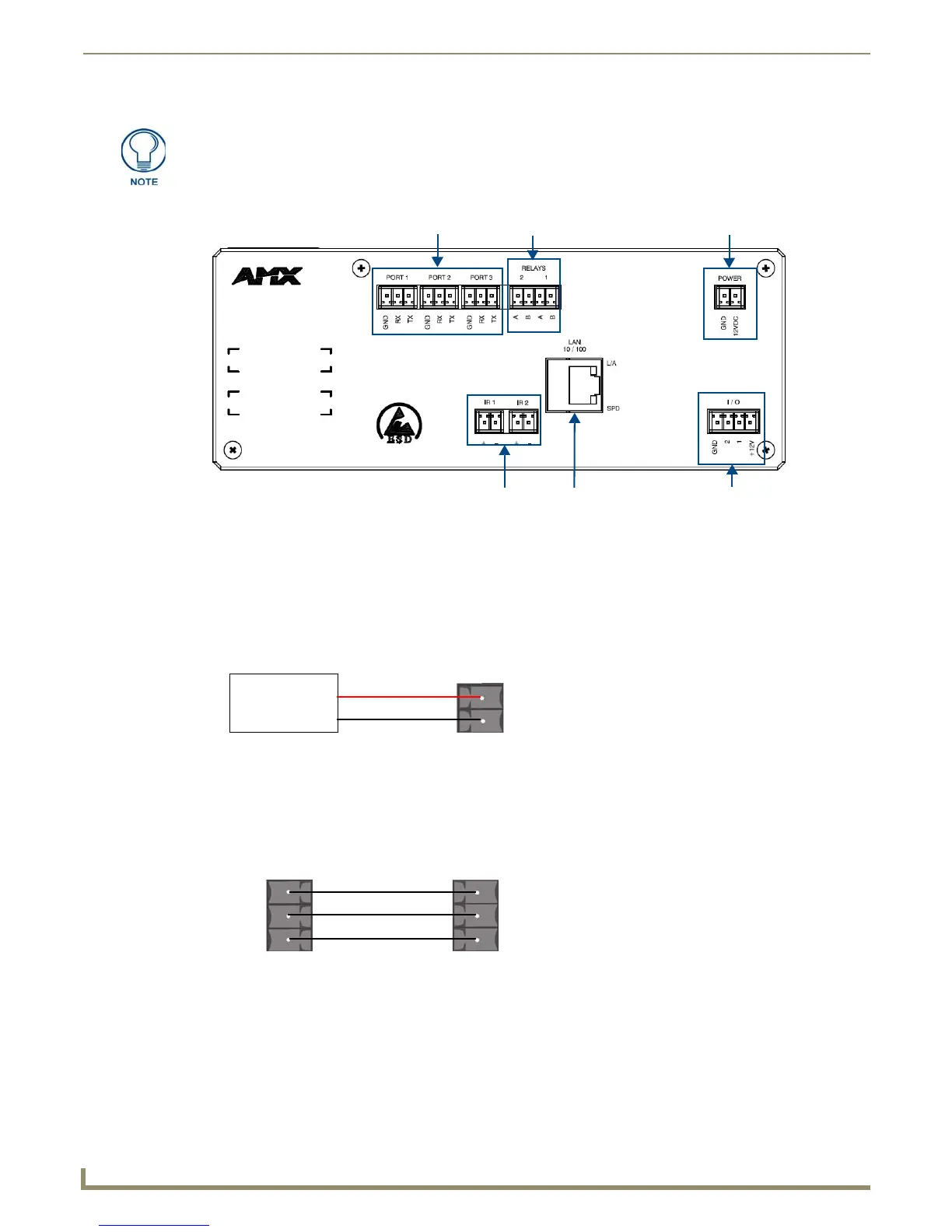

FIG. 12 displays the rear panel of the CP-3017-TR-US:
Rear Panel Components
The following sub-sections describe each component on the rear panel of the 3000-series ControlPads. Refer to
Overview section on page 11 for the component layout of the rear panels of each type of NOVARA 3000-series
ControlPad.
Power
The NOVARA 3000-series ControlPads features a 2-pin Phoenix connector accepting 12V
DC
power.
RS-232
The NOVARA 3000-series ControlPads features up to two RS-232 connector ports so you can connect up to two serial
devices to the ControlPad. The serial connectors comply with EIA-232-F signal levels. The RX line supports polling for
RS-232 devices for statuses such as power status, input status, and lamp hours, so that this information can be provided
to RMS.
Input voltage is as follows:
V
IH
> +2.7 V
DC
V
IL
< -2.7 V
DC
Output voltage is as follows:
V
OH
> +5.0 V
DC
@ 35 mA maximum
V
OL
< -5.0 V
DC
@ 35 mA maximum
The CP-3017-NA ControlPad has an identical rear panel layout as the CP-3008
except that the CP-3017-NA contains a third RS-232 port.
FIG. 12 CP-3017-TR-US rear panel
FIG. 13 Power Supply wiring
FIG. 14 Serial Connector wiring
RS232 ports
Relay ports
Power
IR ports
LAN port
I/O port
Power Supply
+12V
DC
GND
ControlPad
RX
ControlPad
TX
GNDGND
RX
TX
External Controller
