2. Enter a device ID number within the range of 2000-65536 in the RMS Unique ID field. If you enter a number
outside the device ID range, an error message appears.
3. Enter a name for the button in the Assigned Name field.
4. Click Save. The dialog closes and the custom button appears in the Button Assigned Name options menu.
Inputs
The Input buttons enable you to program events for devices connected to the ports on the backside of the keypad. You
can write scripts for ports that are detected to have transitioned from a High to a Low state, or from a Low to a High
State.
Script Types
You can create three different types of scripts: Boot-Up, Schedule, and Timeout. When you select one of the script types,
the Button section is disabled and the Script section shows the list of scripts for the selected script type. To create one of
the above script types, you must do the following:
Create a script
Program the device with the script
Creating a Boot-Up Script
A Boot-Up script allows you to create a list of scripts for boot up purposes. A Boot-Up script is the first script to execute
on device boot up. Once you click the Boot-Up Script button, the Button section is disabled, and the Script section shows
the list of scripts for Boot Up. Once the designated boot-up script is loaded to the device, the script executes when you
launch the device. Perform these steps to create a boot-up script:
1. In the Script Types area, click Boot Up.
2. Program a script containing any actions you want to occur upon device launch.
3. Click Program Devices. The Programming Device(s) Monitor dialog opens and displays the list of devices to be
programmed. For more information on programming a device, see the Programming a Device section on page 53.

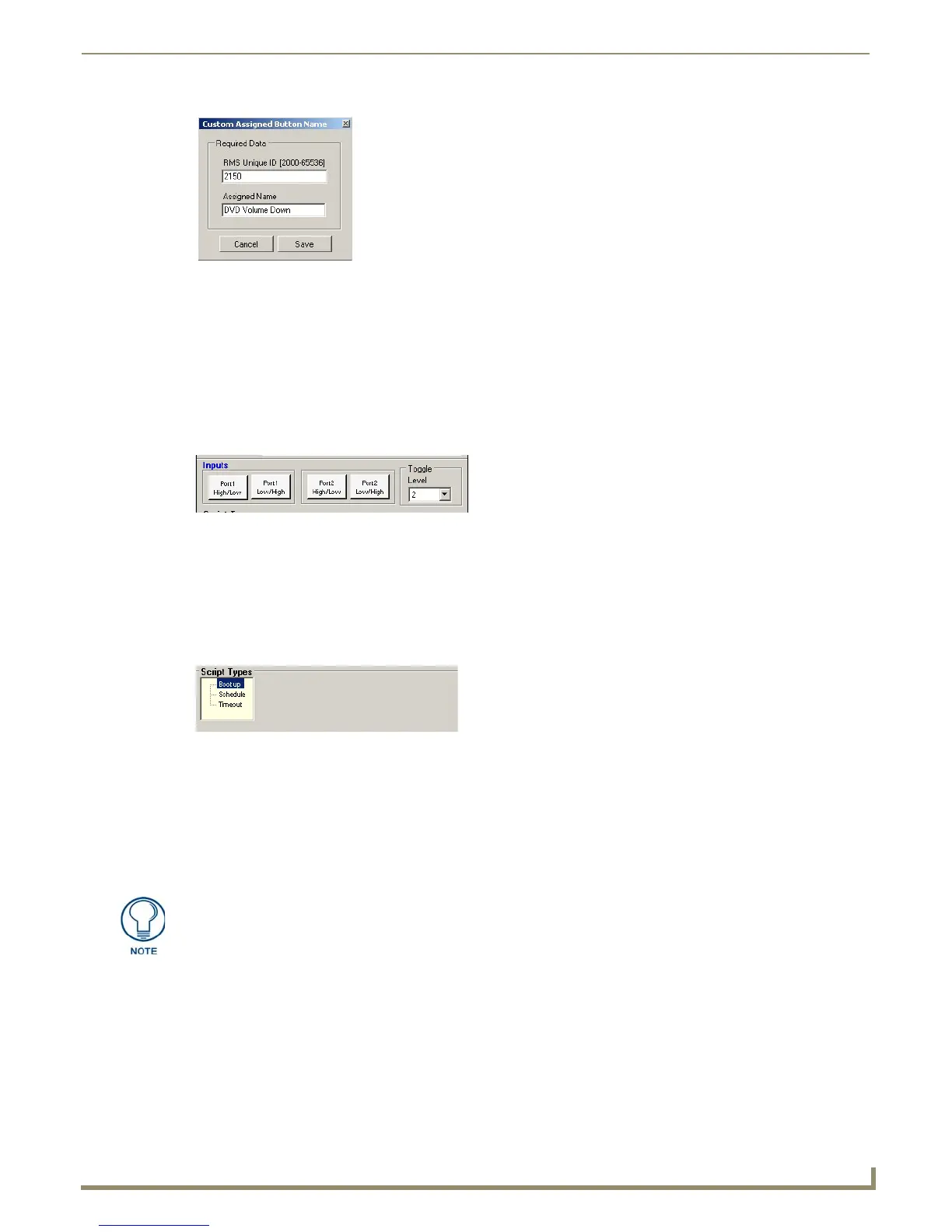

FIG. 67 Custom Assigned Button Name dialog
FIG. 68 Inputs area
FIG. 69 Script Types area
All button actions and events appear greyed-out. Clicking an object on the device
interface exits Boot Up Script mode.
