Wiring and Device Connections
14
Novara 3000 Series ControlPads Instruction Manual
Output only port. Output voltage is as follows:
V
OH
= +3.3 V
DC
+/- 0.3 V
DC
@ 13 mA maximum
V
OL
= 0 V
DC
+/- 0.3 V
DC
@ 13 mA maximum
The IR/Serial connector wiring specifications are listed in the following table.
LAN (RJ-45)
The LAN RJ-45 port provides 10/100 Mbps communication via Cat5/5e/6 network cable. The LAN port automatically
negotiates the connection speed (10 Mbps or 100 Mbps), and whether to use half duplex or full duplex mode. The LAN
port is best used for connecting to a network switch.
FIG. 19 provides the pinouts and signals for the LAN connector and cable.
IR Connector Wiring Specifications (per Port)
IR connections Signal Function
1 GND (-)
Signal 1 (+)
Signal GND
IR data
2 GND (-)
Signal 2 (+)
Signal GND
IR data
Do NOT connect a power connector to either IR port. Doing so may damage the
ControlPad.

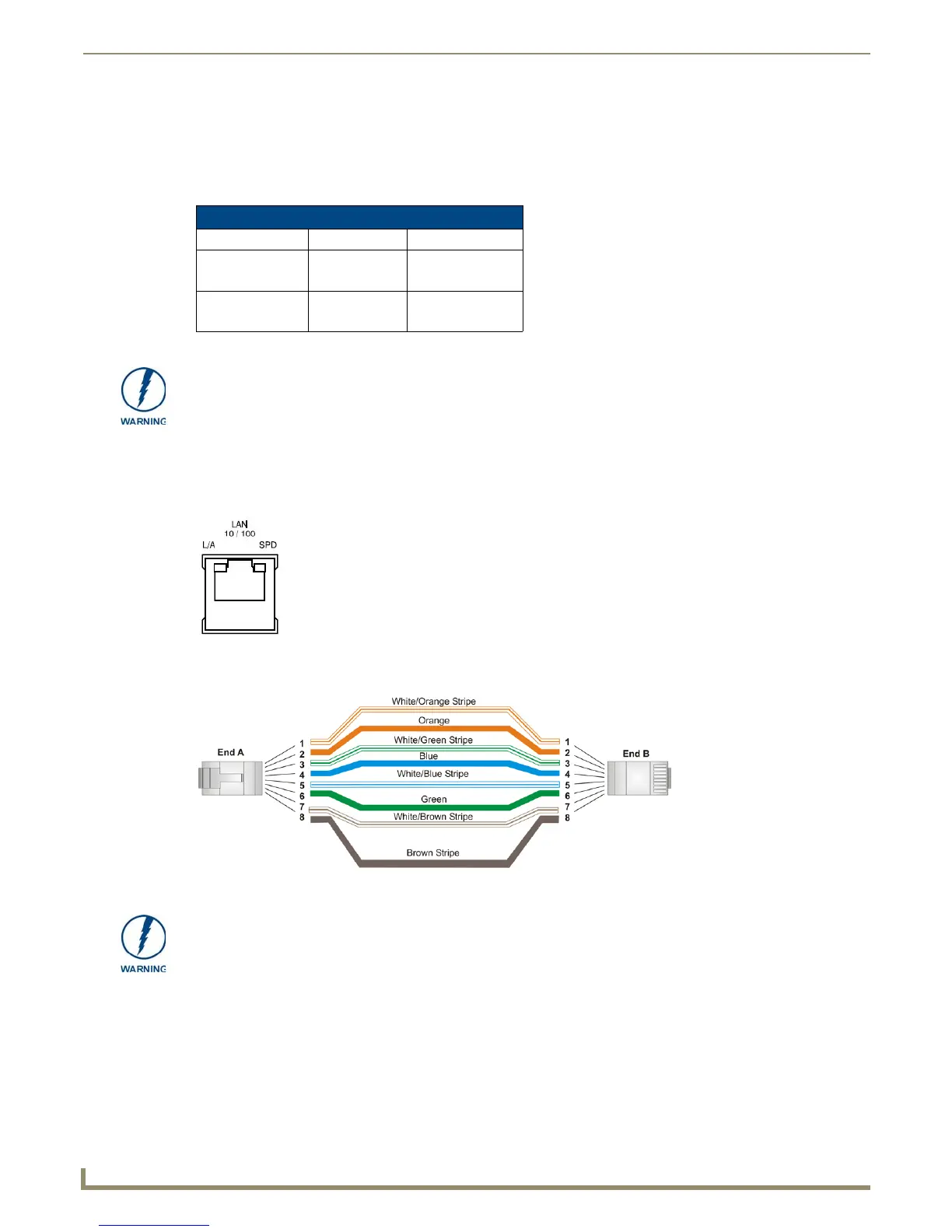

FIG. 18 LAN port
FIG. 19 RJ-45 wiring diagram
If ethernet connectivity is lost on any keypad, and then re-established, connectivity
may take some time to resume. You will be unable to program the keypad until it is
fully online.
