Wiring and Device Connections
16
Novara 3000 Series ControlPads Instruction Manual
Button Functions
You can create a CP-3000 script for each button on the remote to perform a specific task when pressed. The buttons can
be programmed by using AMX DCS software to program a virtual button. Each button has a corresponding IR remote
code. See the IR Remote Codes section for a list of IR remote codes.
To program a button function, write a script for a virtual button numbered with the corresponding IR remote code for the
button on the remote plus 100. For example, if you want to program the Power button on the remote, you should write a
script for virtual button 109 (9+100). Select the virtual button from the Button Num menu in the Button Event area of the
AMX DCS window.
For more information about scripting and using AMX DCS, see the Device Configuration Software section on page 25.
IR Remote Codes
The following table lists the IR codes for the CP-RC01 remote.

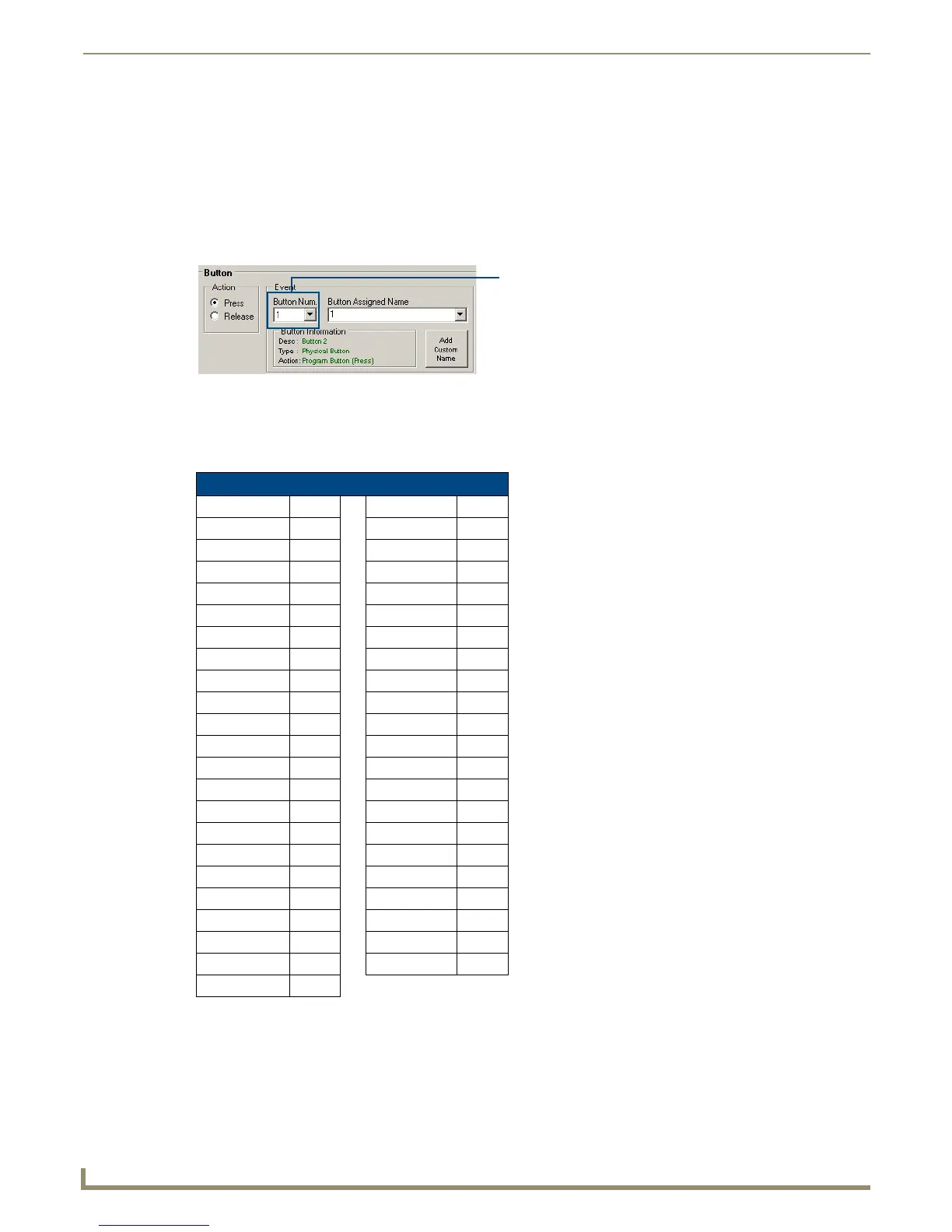

FIG. 21 Button Event area of the AMX DCS window
IR Remote Codes
Button Code Button Code
Mute 26 Record 8
Power 9 Pause 2
PC 30 Stop 3
STB 31 Volume Up 24
Disc 32 Volume Down 25
Aux 33 Page Up 106
Red 71 Page Down 107
Green 72 Channel Up 22
Yellow 73 Channel Down 23
Blue 74 1 11
Exit 50 2 12
Info 101 3 13
Up 45 4 14
Down 46 5 15
Left 47 6 16
Right 48 7 17
OK 49 8 18
Guide 105 9 19
Menu 44 0 10
Rewind 5 Subtitle 100
Play 1 Prev 81
Fast Forward 4
Select a virtual button
from this menu.
