Wiring and Device Connections
17
Novara 3000 Series ControlPads Instruction Manual
PS-PoE-EX0.9 PoE Extractor
The PS-PoE-EX0.9 PoE Extractor (FG423-85) (FIG. 22) is a power extractor module that delivers regulated DC power
for any secondary device that is not Power-over-Ethernet (PoE) capable. It allows multiple PoE devices to run over a
single power over Ethernet.
Product Specifications

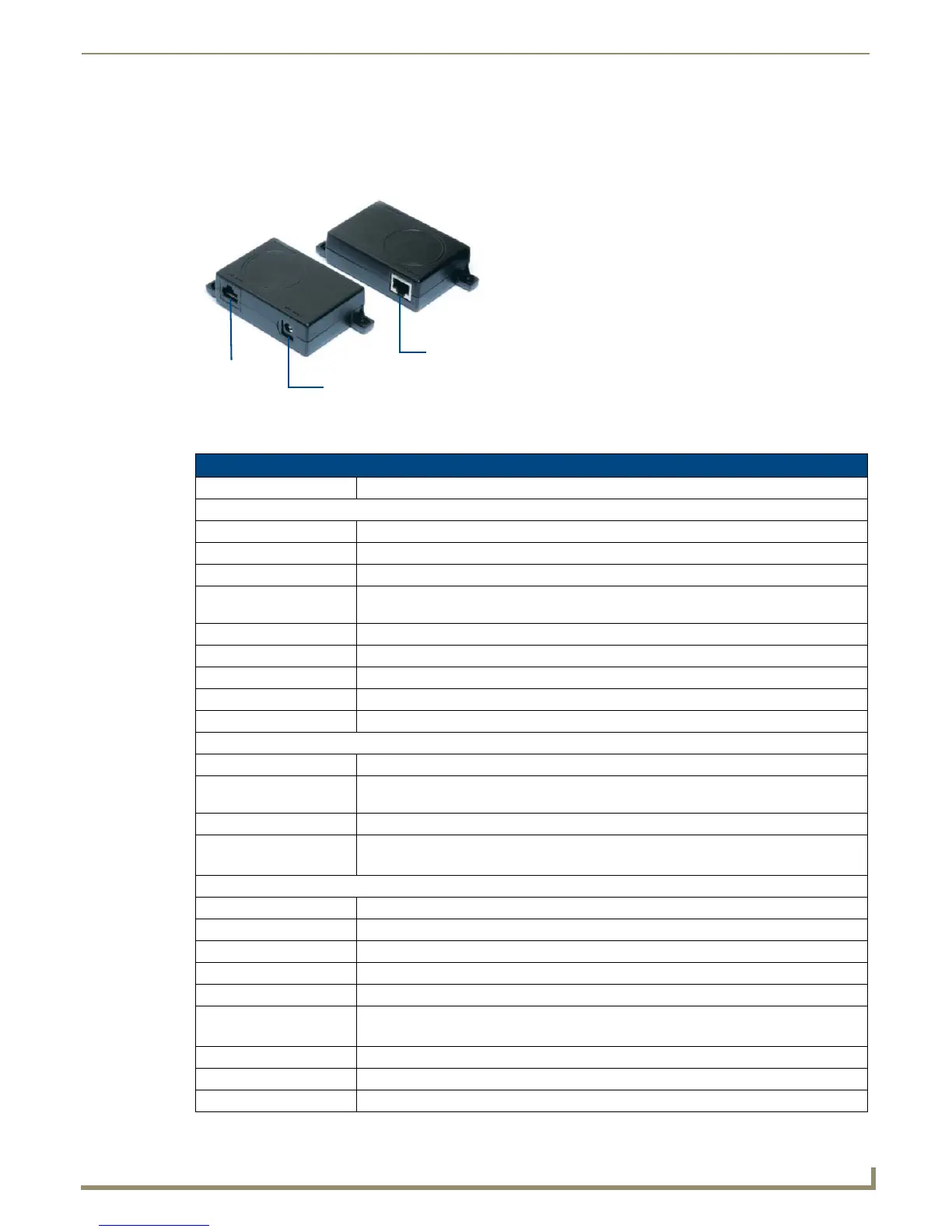

FIG. 22 PS-PoE-EX0.9 PoE Extractor
PS-PoE-EX0.9 PoE Extractor
Input Connector: Standard LAN connector
Output:
Output Voltage: 12V
DC
Output Current: 0.9A
Output Power: 10.8W
Line and Load Voltage
Regulation:
+/-1% V-out
Efficiency: 88% min.
Transient Response: 1% of V-out (50%-100% load deviation)
Overvoltage Protection: Transorb protected
Output Connection: Standard
Output Noise: 1% of V-out, 20MHz BW
Input:
Input: 36-57 V
DC
Input Current Overload
Protection:
When Iin > 450mA for 75mSec, input latches off
Input Surge: Transorb protected
Input Undervoltage: • Turn on: 33-42 V
DC
• Turn off: 30-34 V
DC
General:
Switching Frequency: 200kHz +/- 1%
Recovery Time: 100Usec to 1% V-out (SR= 1a/10Usec)
I-overload: 120% ± 5%
Short Circuit: Auto recovery when short is removed
Thermal Shutdown: Internally protected against over-temp conditions.
Operating Temperature: • Storage temperature range: -40° - 185° F (-40° - 85° C)
• Operating temperature range: -40° - 140° F (-40° - 60° C)
Dimensions (LWH): 3” x 2 1/8” x 1” (7 5/8 cm x 5 1/3 cm x 2 1/2 cm)
Weight: 58 g (205 oz.)
Certifications: RoHS
LAN
output
Power output
LAN
input
