The features on this page include:

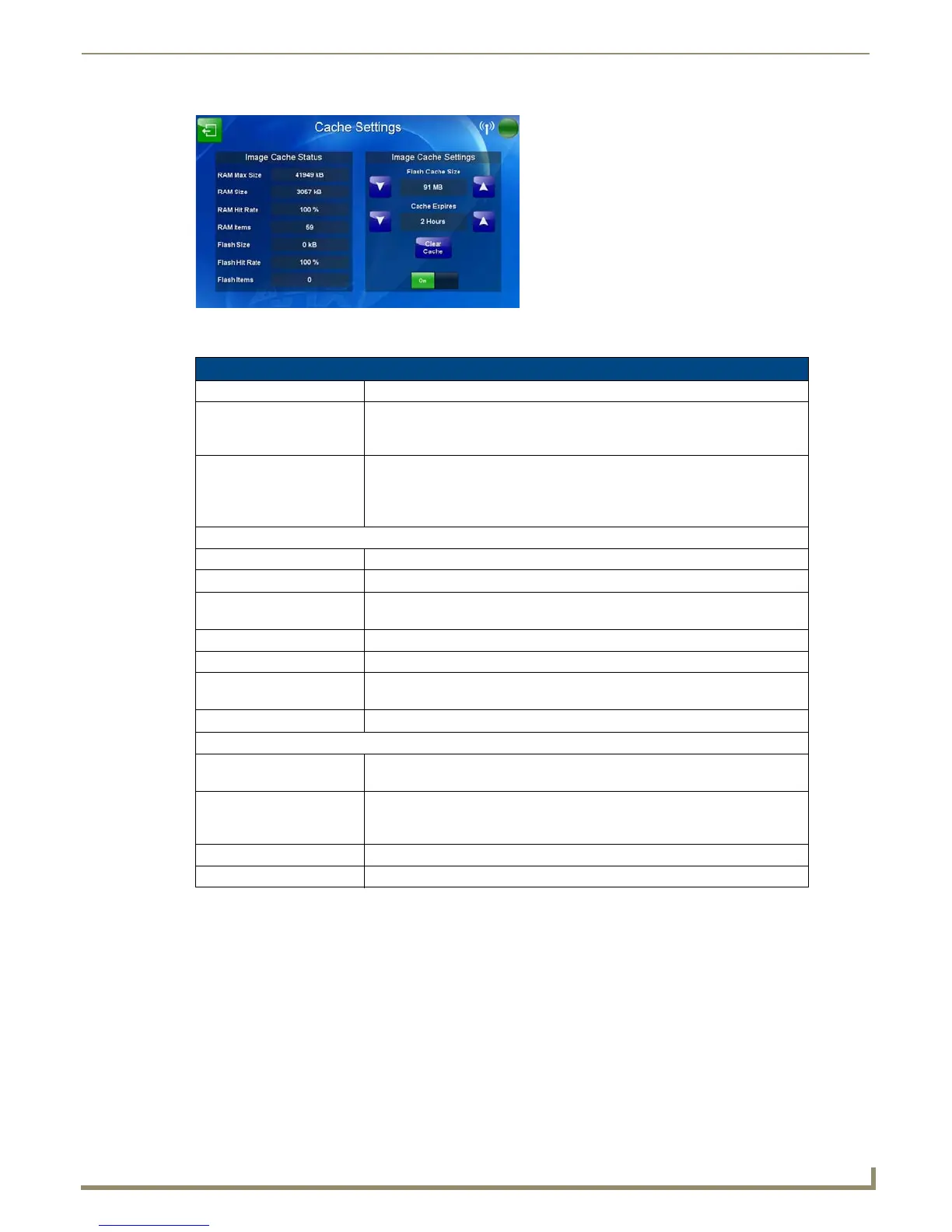

FIG. 93 Cache Settings page
Cache Settings Page
Back: Saves all changes and returns to the previous page.
WiFi/Wired icon: The icon to the left of the Connection Status Icon displays whether the current
connection to the Master is Wireless (image of a radio antenna) or Wired
(image of three networked computers).
Connection Status icon: The icon in the upper-right corner of each Protected Setup page provides a
constant visual indication of current connection status.
Note: a Lock appears on the icon if the panel is connected to a secured NetLinx
Master.
Image Cache Status
RAM Max Size: The maximum size allocated to the RAM cache.
RAM Size: The size of the current RAM cache contents.
RAM Hit Rate: The percentage of recent image requests satisfied by accessing the RAM
cache.
RAM Items: The total number of cached images in the RAM cache.
Flash Size: The size of the current Flash cache contents.
Flash Hit Rate: The percentage of dynamic image requests not satisfied by accessing the RAM
cache, but satisfied by accessing the Flash cache.
Flash Items: The total number of cached images in the Flash cache.
Image Cache Settings
Flash Cache Size: Use the Up/Down buttons to increase or decrease the total size of the flash
memory cache. The maximum varies based on free Flash space.
Cache Expires: Use the Up/Down buttons to control the amount of time elapsed before the
panel automatically deletes its cache, with increments of 2 hours, 8 hours, 1
day, 2 days, 5 days, and "NEVER".
Clear Cache: Clears the contents of both the RAM and Flash caches.
On/Off: Saves any changes made to the Flash Cache Size or Cache Expires fields.
