MVP-9000i 9" Modero® ViewPoint® Touch Panel with Intercom
System Settings - USB
The USB tab (FIG. 88) controls the ability for the MVP-9000i to connect to a network via a USB connection.
The features on the USB tab include:
Calibrate Page
The Calibrate page (FIG. 89) allows you to calibrate the touch panel for accurate button selection.
1. From the Protected Setup page, touch the Calibration button to open the Calibrate page.
2. Press the crosshairs in turn. If the crosshairs are not touched within ten seconds, the MVP-9000i will return to the
Protected Setup page.

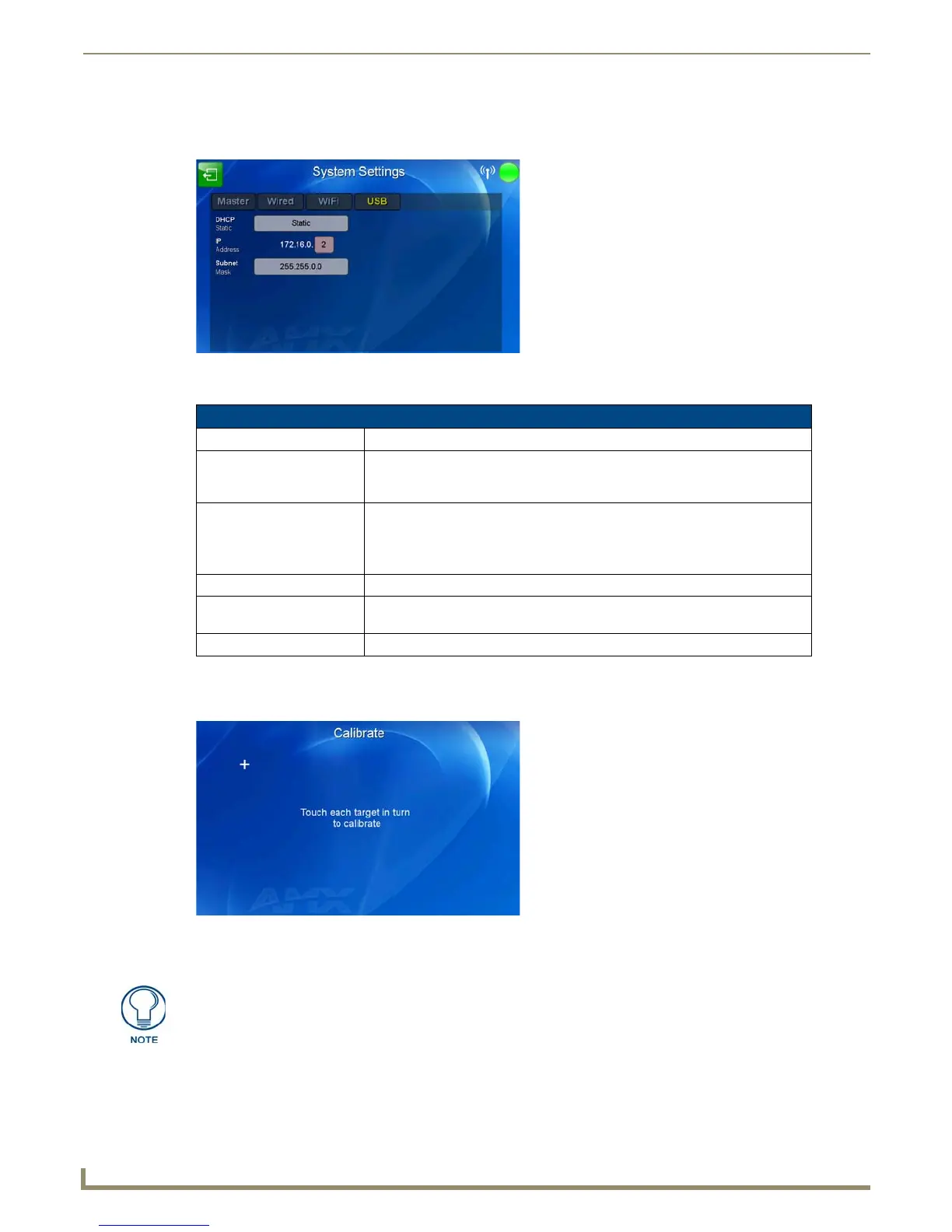

FIG. 88 System Settings page - USB tab
System Settings - USB Tab
Back: Saves all changes and returns to the previous page.
WiFi/Wired icon: The icon to the left of the Connection Status Icon displays whether the current
connection to the Master is Wireless (image of a radio antenna) or Wired (image
of three networked computers).
Connection Status icon: The icon in the upper-right corner of each Protected Setup page provides a
constant visual indication of current connection status.
Note: a Lock appears on the icon if the panel is connected to a secured NetLinx
Master.
DHCP/Static: This field will always display Static.
IP Address: Displays the secondary IP address for the panel. The last series of digits may
be edited, with a host number added between 2 and 254.
Subnet Mask Displays the subnet mask address for the panel.
FIG. 89
Calibrate page
The Calibrate page may also be accessed by holding the lower left capacitive touch
button and the directional pad for 6 seconds, or by pressing the Reset button on the
left side of the device for 9 seconds.
