Panel Statistics Page
The Panel Statistics page (FIG. 94) displays activity between the device and the network. The page contains four tabs:
ICSP, Blink, IP, and Wireless. in proportions of ICSP messages, blink messages, and Ethernet versus wireless use.
Panel Statistics - ICSP
The ICSP tab collects the number of ICSP messages received by the device.
The features on this tab include:

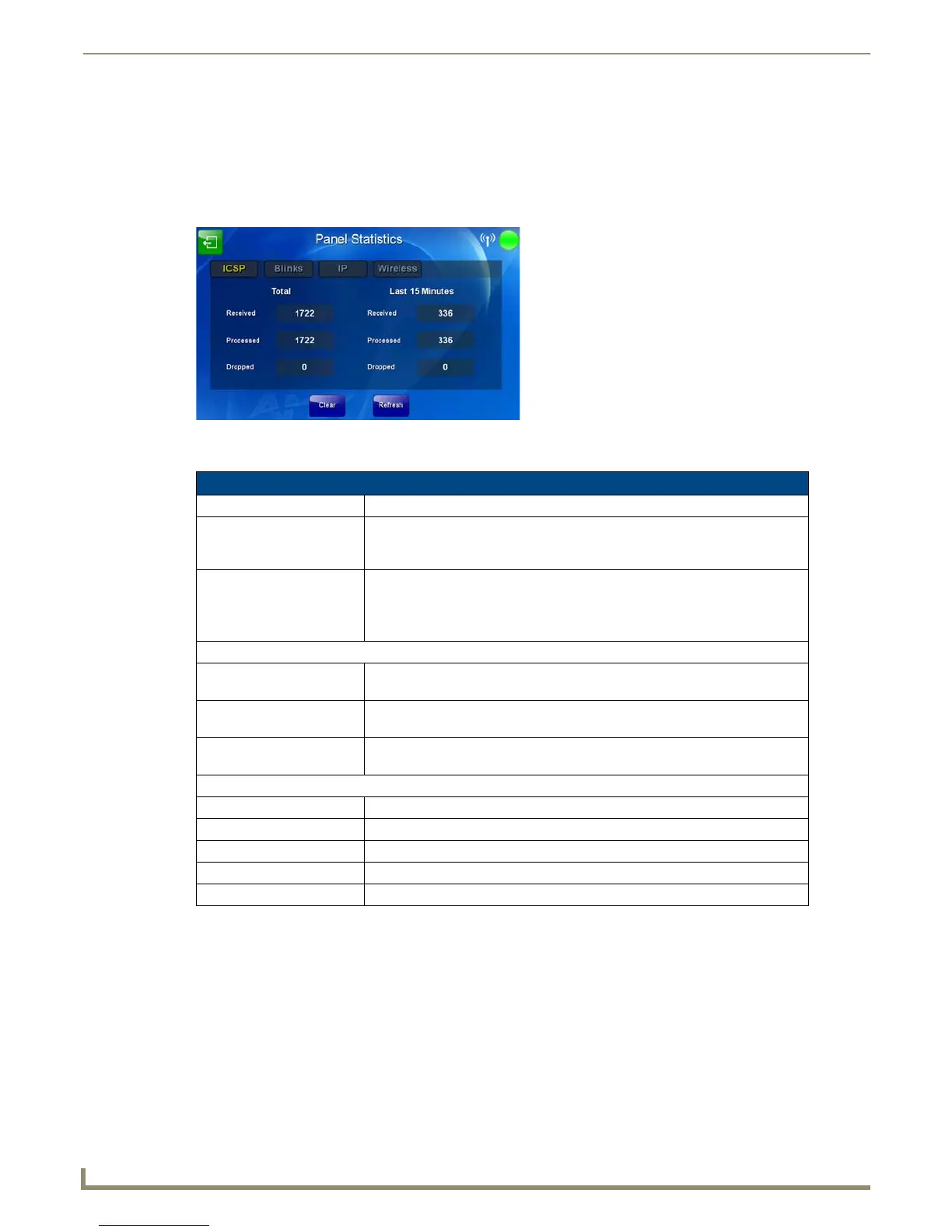

FIG. 94 Panel Statistics - ICSP Tab
Panel Statistics - ICSP Tab
Back: Saves all changes and returns to the previous page.
WiFi/Wired icon: The icon to the left of the Connection Status Icon displays whether the current
connection to the Master is Wireless (image of a radio antenna) or Wired
(image of three networked computers).
Connection Status icon: The icon in the upper-right corner of each Protected Setup page provides a
constant visual indication of current connection status.
Note: a Lock appears on the icon if the panel is connected to a secured NetLinx
Master.
Total:
Received: Lists the number of ICSP messages received since the last time the page was
cleared.
Processed: Lists the number of ICSP messages processed since the last time the page
was cleared.
Dropped: Lists the number of ICSP messages dropped since the last time the page was
cleared.
Last 15 minutes:
Received: Lists the number of ICSP messages received within the previous 15 minutes.
Processed: Lists the number of ICSP messages processed within the previous 15 minutes.
Dropped: Lists the number of ICSP messages dropped within the previous 15 minutes.
Clear: Clears all fields on the ICSP tab.
Refresh: Refreshes all data on the ICSP tab.
