Andor Technology iXon3 Series User Manual

Page 9
iXon 3
Introduction
1.2.2 - Controller Cards
The Controller cards (CCI-22, CCI-23 or CCI-24) buffer data from the camera, before transfer to the computer memory,
via the PCI bus. The CCI-22 & CCI-23 require a PCI 2.2 slot; the CCI-24 requires a PCIe x1 slot.
All boards are well shielded against electrical interference.
Your iXon3 will be supplied with the controller card that is optimal for your camera model. Controller cards have a 26-pin
interface for connection via a cable to the PC and an auxiliary connector. The pin-outs for the cards are shown on page 79.
1.2.3 - Controller Card Cables
The controller cards require the following connecting cables for correct operation:
• ThecontrollercardconnectorcableisusedtoconnectthecameratothePCIcontrollercard.
• Thepowercableisconnectedwithinthecomputerbetweenanyavailable“Molex”connectorandthePCIcontroller
card. NOTE: The internal power cable is wired to leave a free connector for supplying power to other devices,
should it be required.

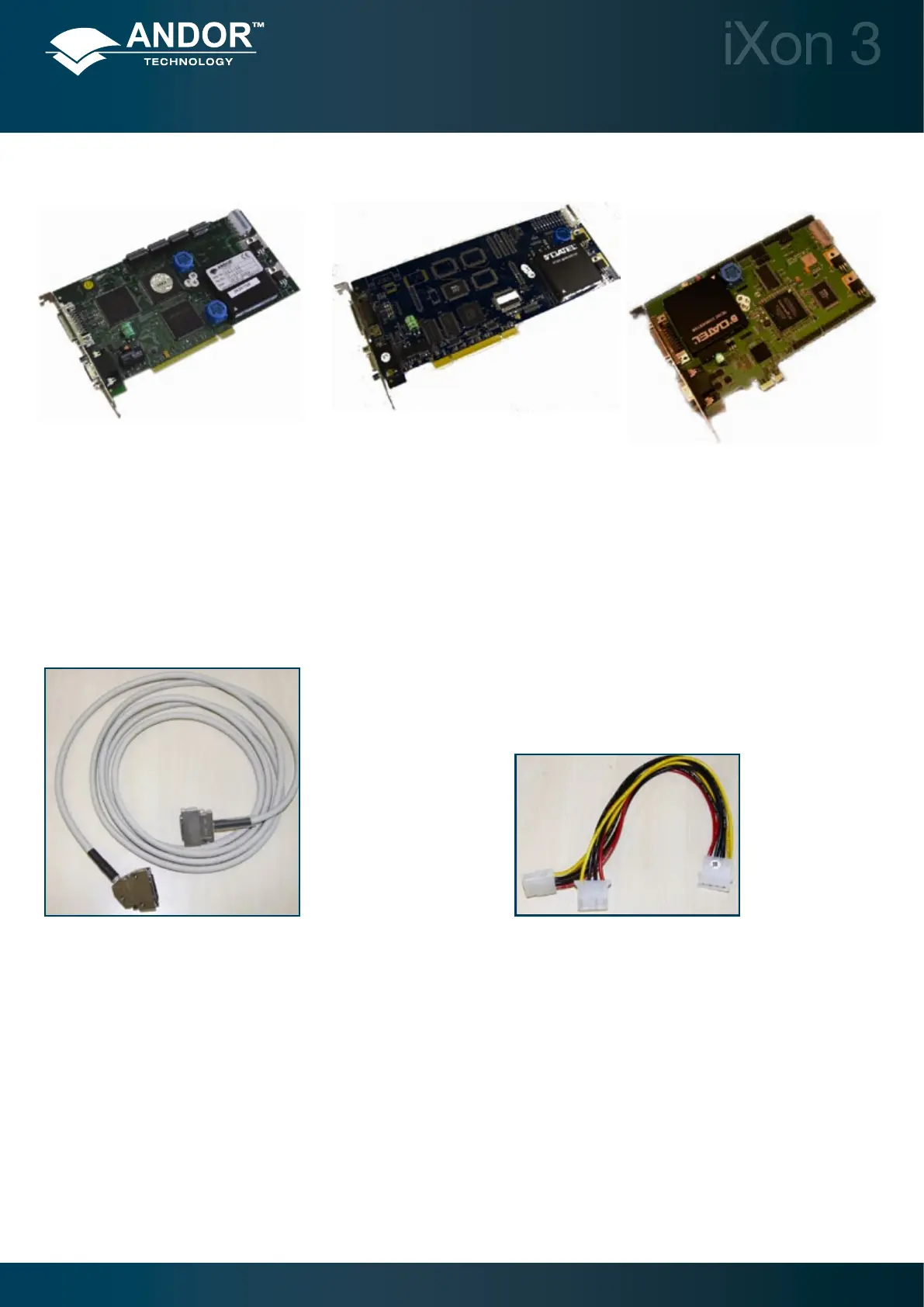

Figure 2: CCD-22
Figure 5:
PCI controller card
to camera cable
Figure 6:
Internal “Molex”
connector cable
Figure 3: CCD-23 Figure 4: CCD-24
