Introduction
1.2.4 - Cooler Power Supply Block

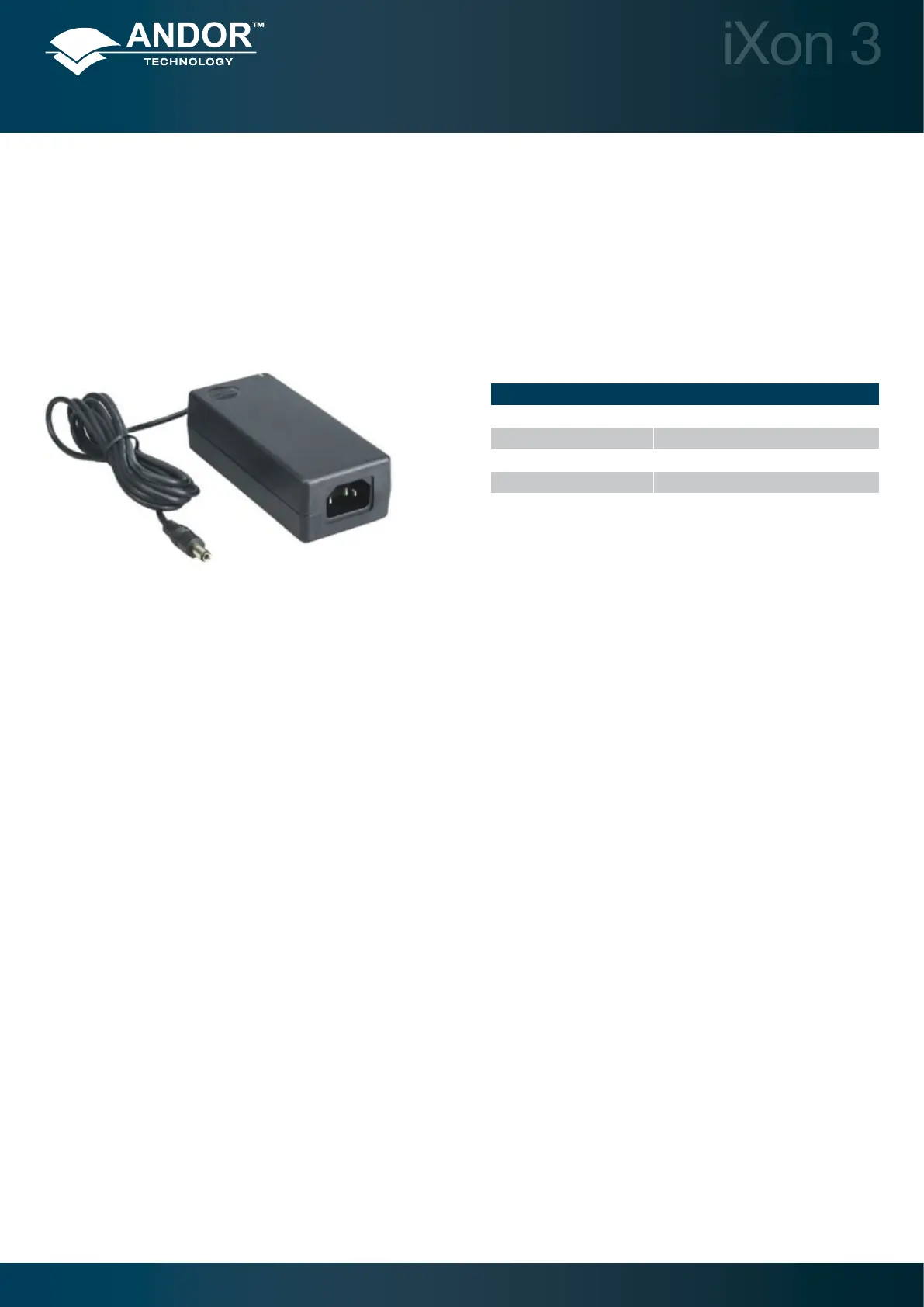

The iXon3 system is designed to be powered from a PS-20 external Power Supply Block (PSB) which is used to supply
power to the Thermoelectric cooler within the camera. The PSB requires an AC mains input between
90-264 V, 47-63 Hz and a maximum supply current of either 1A @ 115V or 0.5A @ 230V. The output of the
PS-20 is 7.5V DC at 4.0A maximum. The PS-20 is tted with a 3-pin IEC connector for the electrical supply input and the
wall socket must be connected to the building’s protective earth system. The connection to the iXon3 is made via a 2.1
mm jack connector.
NOTE:
1. Cooling is only available when the PSB is connected to the camera.
2. In the UK (or other countries using UK standard electrical systems), the mains input into the PS-20 must be
tted with a 240V 5A fuse.
1.2.5 - Software
Your iXon3 may have been supplied with Andor Solis or Andor iQ software, or with the Andor SDK. However it is also
compatible with a range of 3rd party software options offering optimized acquisition control and analysis functionality.
For further details of Andor software capabilities and software options, please go to the following page on our website:
http://www.andor.com/products/software/
POWER REQUIREMENTS
Voltage +7.5V ± 5%
Current 4A maximum at peak cooling
Ripple & Noise 1% maximum
Total Power 30 W maximum
