Andor Technology iXon3 Series User Manual

Page 17
iXon 3
Section Title

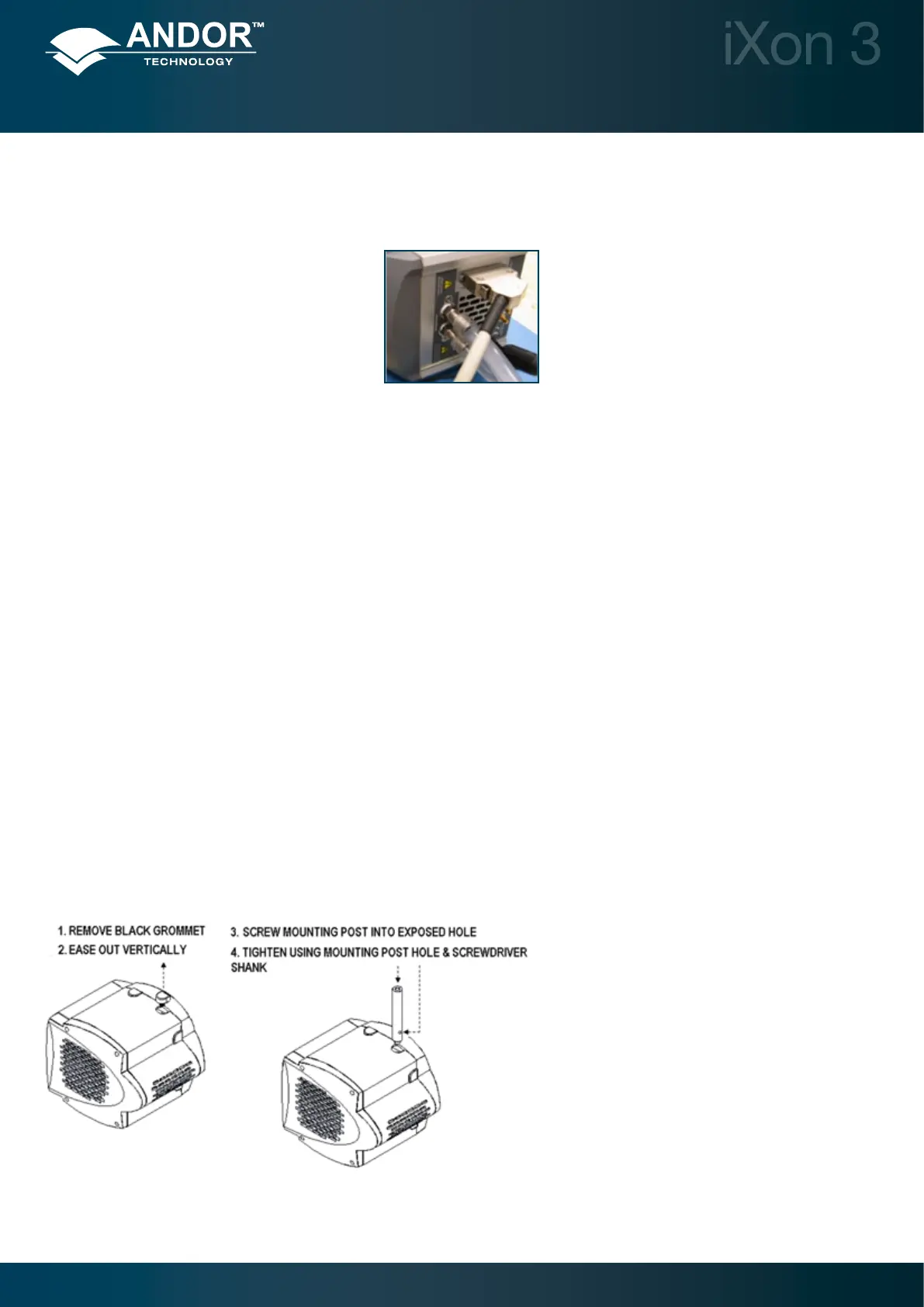

2.3 - WATER PIPE CONNECTORS
Two connectors are tted to the camera in order to allow water cooling pipes to be connected, e.g.:
These can be connected to a water cooler or recirculator to improve cooling.
2.4 - CONNECTING THE SYSTEM
Connect the elements of your system as follows:
1. Wherever possible, plug your PC into the mains outlet to ensure grounding, but keep the power switched off.
2. Connect the Camera to the Controller Card using the Cable provided. It is important that this cable is securely
fastened to provide a good grounding between the camera and Controller Card.
3. Your system has been supplied with a PSB for cooling. The PSB connects to the camera via a 2.1mm Jack plug
and to the mains electricity supply with a standard plug for your location.
4. There is only one socket on the camera that the PSB can be connected to and this is labeled Cooler Power (please
see gure 8 on page 20).
5. For best performance the PSB should be plugged into the same power source as the computer.
2.5 - MOUNTING POSTS
• Mountingpostscanbettedonthreesidesofthecamera.ThesecanbeusedtomountthecameraiftheC-Mount
isnotused,and/ortomountaccessories.NOTE:.AbagcontainingtwoØ1/2”x80mmlongx1/4-20UNCpostsis
included with all kits
• Thereare3pairsofholesforthemountingposts,eachwith2.0”spacing.
Figure 10: Mounting post installation
