Andor Technology iXon3 Series - Controller Card Pinouts

Page 67
iXon 3
Hardware

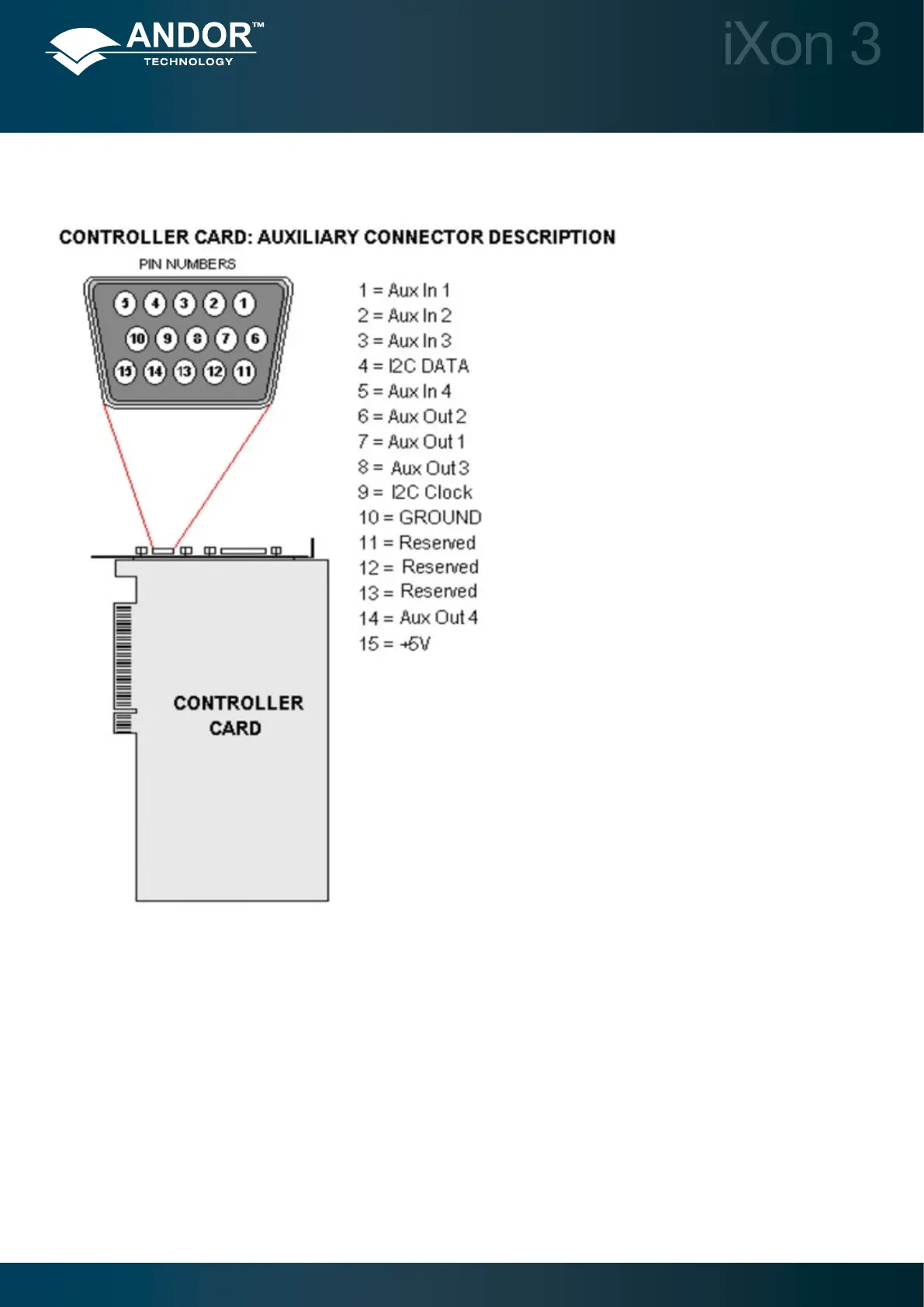

4.5 - CONTROLLER CARD PINOUTS
WARNING: Pins 11, 12 & 13 are reserved. These pins are NOT available for auxiliary use. DO NOT make electrical
connections to these pin locations when attaching external devices via the Controller Card Auxiliary Connector
Port. Doing so may cause damage to the Controller Card, the Camera or your external device.
