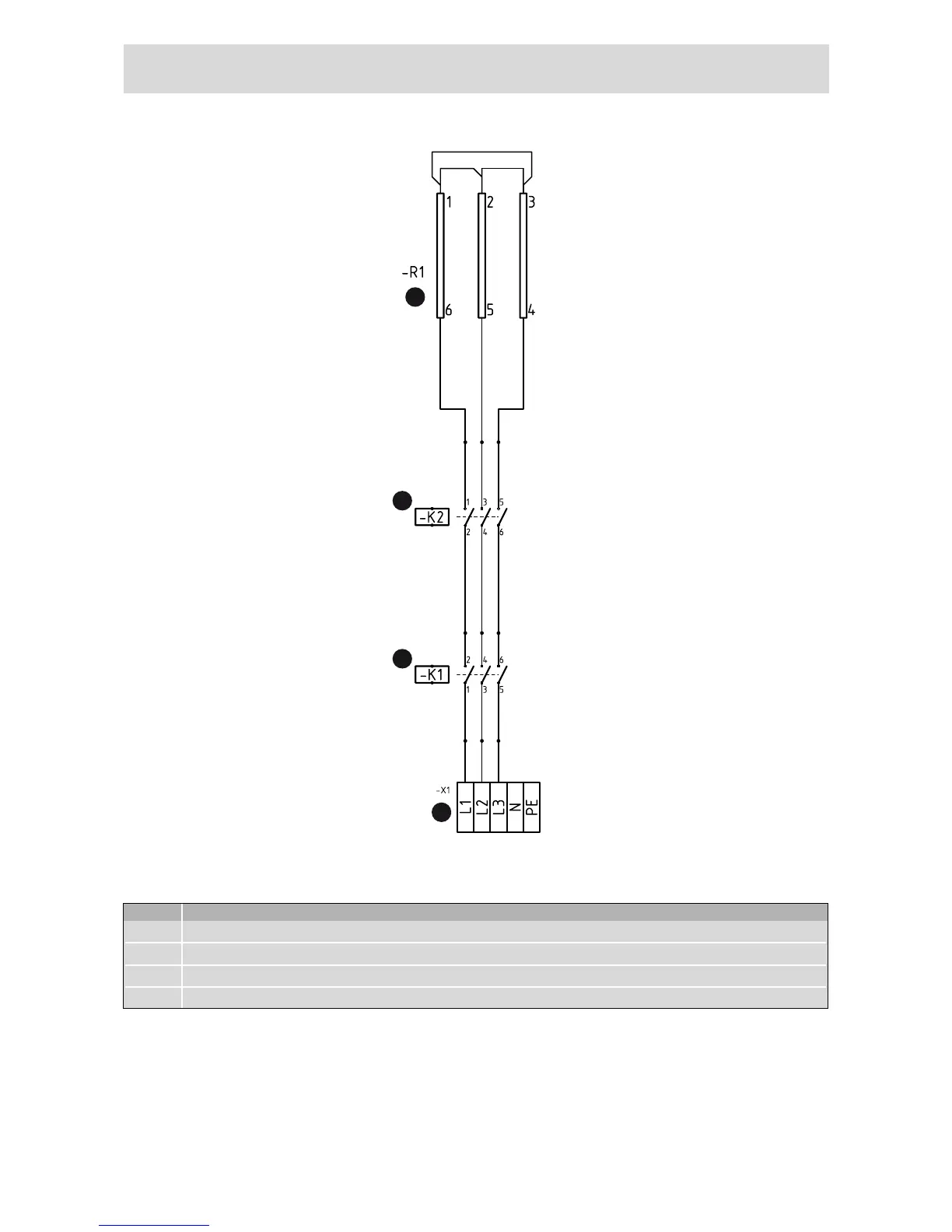

SCHEMA ELETTRICO (FX 61/101 E1-2/E1-2R - 400V 3N - B) - ELECTRICAL SYSTEM DIAGRAM (FX 61/101 E1-2/E1-
2R - 400V 3N - B) - SCHALTPLAN (FX 61/101 E1-2/E1-2R - 400V 3N - B) - SCHEMA ELECTRIQUE(FX 61/101 E1-2/
E1-2R - 400V 3N - B) - CUADRO ELÉCTRICO (FX 61/101 E1-2/E1-2R - 400V 3N - B)
Rif. Descrizione - Description
1
Morsettiera - Terminal board
2 Contattore sicurezza - Safety contactor
3 Contattore lavoro - Heating contactor
4 Resistenza - Heating element
400V 3N
1
2
3
4
