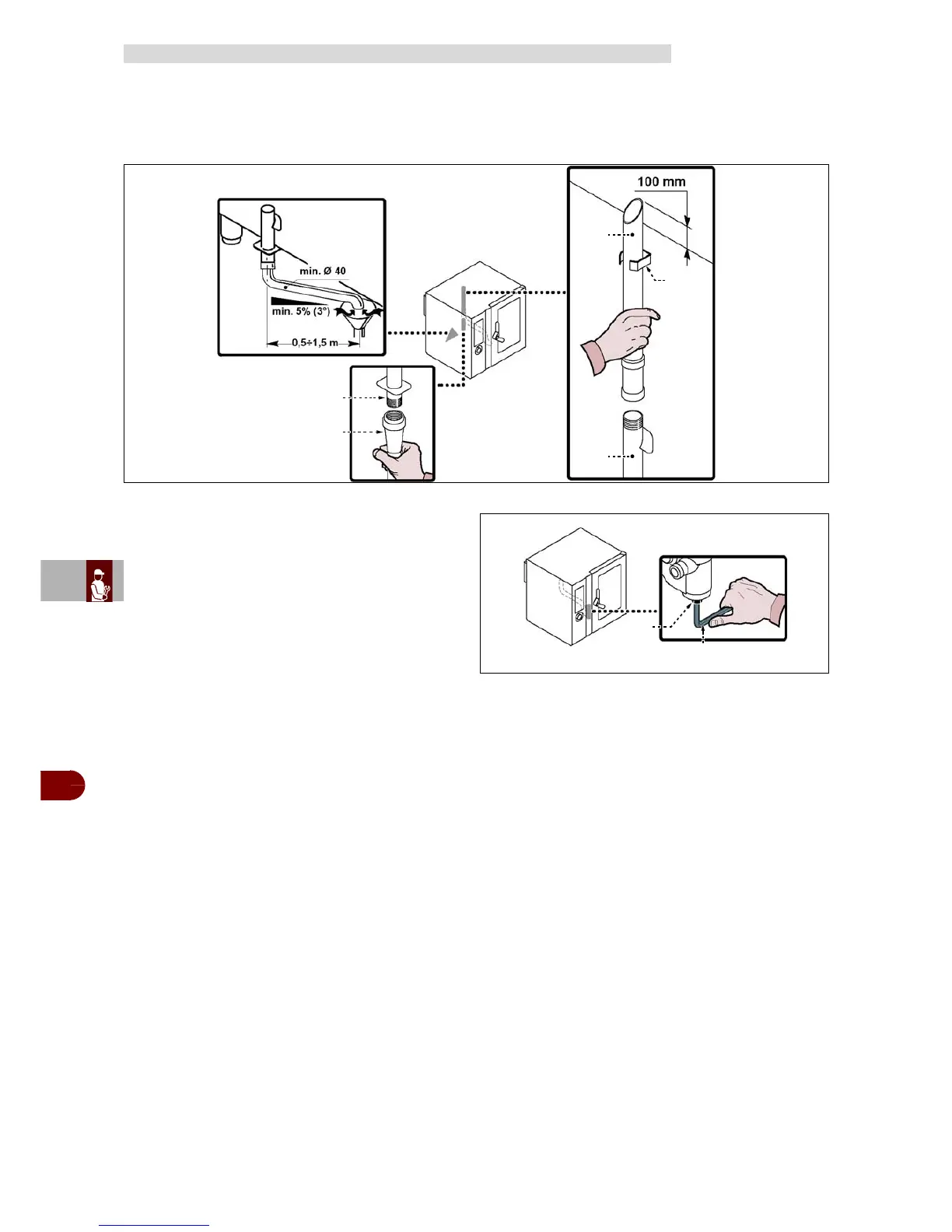

To carry out this operation, proceed as follows.
1–Connect the mains water pipe (A) to the appliance's connection pipe (C).
2–Connect the vent pipe (D) to the appliance connection pipe (C) and fix it to the sup-
port (E).
the appliance's drain line is fitted with the plug
(B) allowing discharge of the waste deposited.
WATER DRAIN CONNECTION
