Sprint Pro Sprint Pro Orientation
I. Sprint Pro Orientation

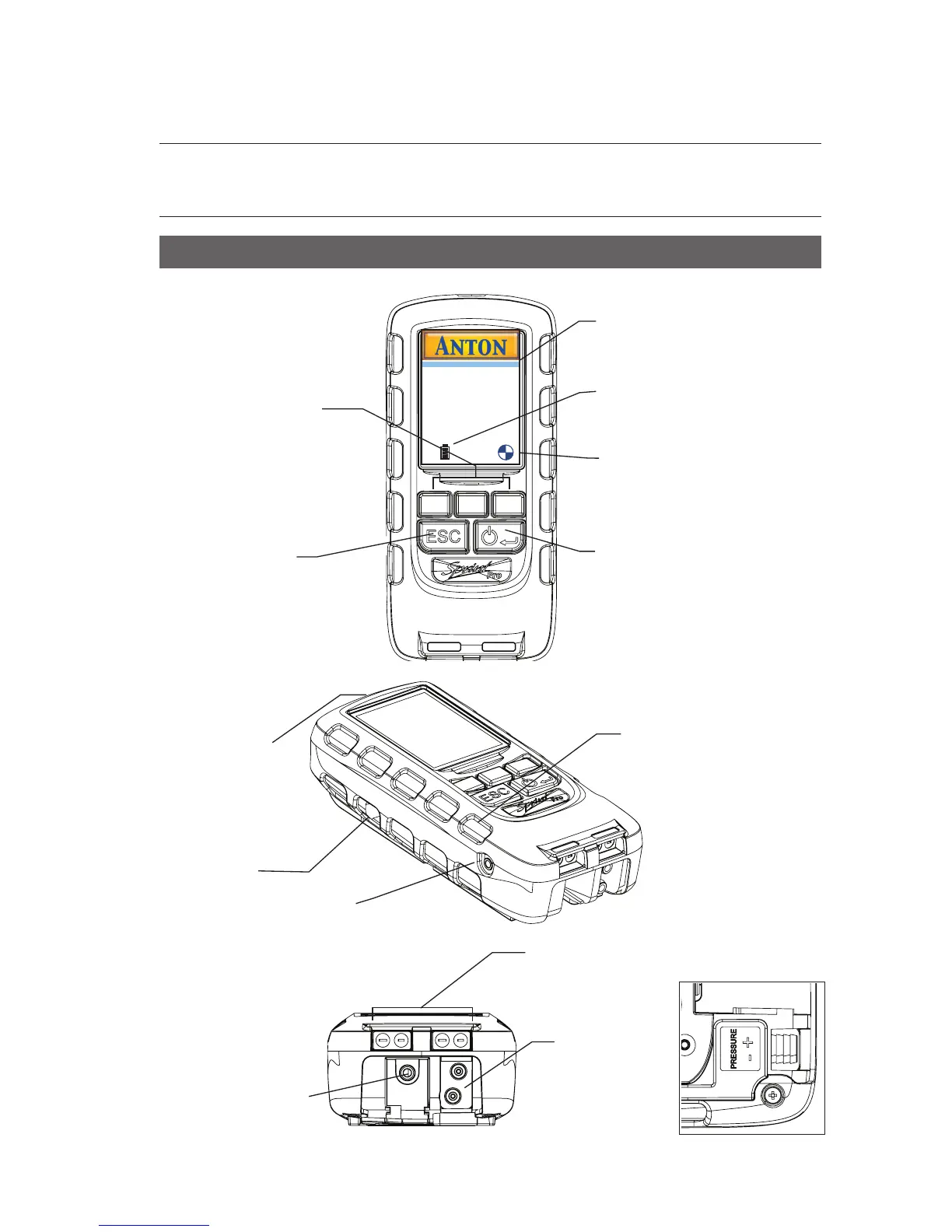

Overview
Display
Showing start-up
splash screen
ON/OFF/ENTER key
Press and hold button for two
seconds to switch on and switch
off Sprint Pro. Use this key to
finish edits, save changes and
view next page of multiple
paged screens.
ESCAPE key
Use this button to quit
tests and step back
through menus.
Purge icon
Rotating icon shows
pump is purging
USB connector
For charging and
communications to PC
(Sprint Pro 1 does not
offer connectivity to PC)
Gas escape probe
jack connector
IR window
Printer output
Exhaust exit
Warning: do not
inhale exit gas exhaust
or block exit
Thermocouple
sockets
K-type connectors
Flue sample inlet
Pressure inlets
T: +44 (0)870 428 0075
www.anton-group.com
Sprint Pro 3
5430910000J18
Your company name
Your Company Phone
Soft keys
Use these unmarked buttons
to make selections from the
menu, start and stop tests,
print and store results.
See section Operation for more
details
Battery icon
Three bars show
complete charge
To Next Page
