OPERATION / MAINTENANCE MANUAL
MODEL 50 VIBRATORY HAMMER WITH MODEL 260 POWER UNIT
I. GENERAL INFORMATION (Continued...)
I-3A. The Suppressor Housing
The suppressor housing of the Model 50 APE Vibrator is the top part of the vibro that attaches to the
crane line. It is designed to absorb the vibration generated from the vibrator gearbox. Three different
types of suppressors can be mounted to the APE Model 50 vibro. The standard suppressor is for light
to medium work, the heavy duty suppressor is for hard extraction. A third type of suppressor is used
when the unit is mounted to an excavator. In addition, many special suppressors have designed for
unique jobs, such as inside buildings where headroom is a problem.

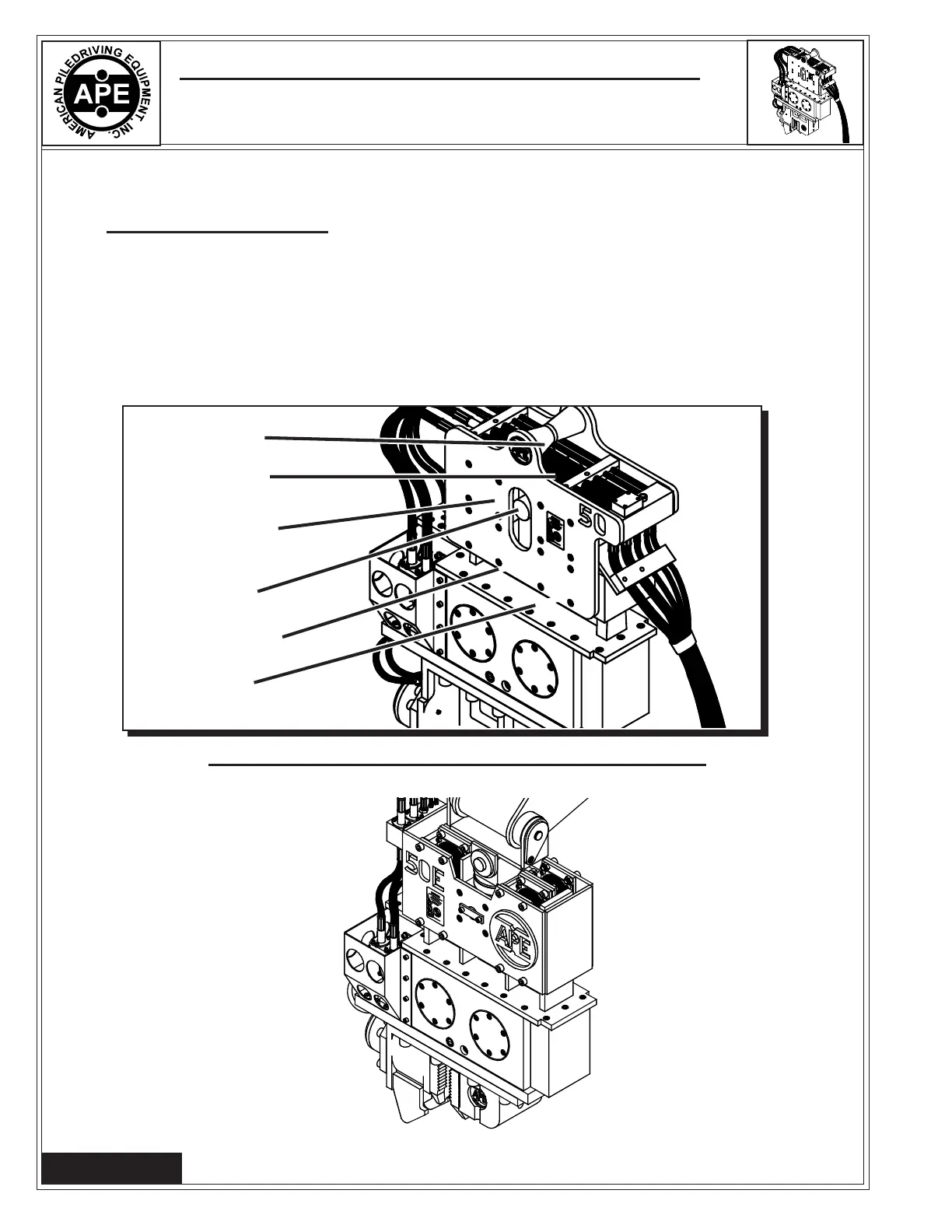

Figure 1-C. General Description of Suppressor Housing.
Lifting Pin
Elastomers
Suppressor
Housing
Safety Pin
Center Plate
Top Plate
Page 1-4
Excavator type suppressor
shown with mounting pin.
