10 02.A.003

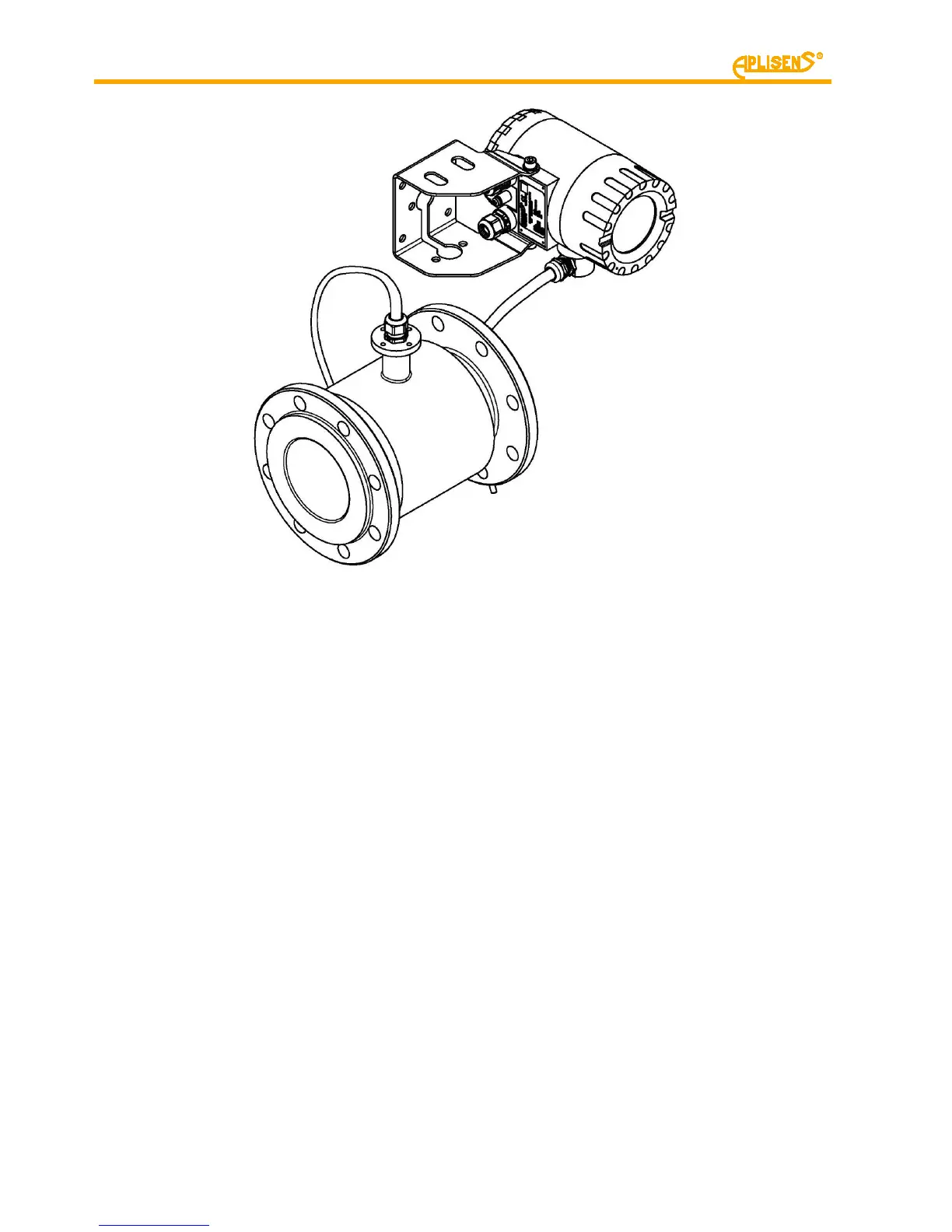

Figure 2. The flow meter PEM-1000NW. The remote version.
6.3.1. The sensor design
The housing of the sensor is made of non-magnetic material, welded with flanges and
fasteners. The insulating insert of the required properties is installed inside the pipe
(compatible with the medium type). The system of the electromagnet coils generating
the required magnetic field is mounted directly on the measuring pipe.
A pair of electrodes placed opposite to each other and passing through the lined measuring
pipe is made of stainless steel (standard) or of other electrically conductive materials
matched to the properties of the measured medium.
The electrical system of the sensor is welded in the steel housing with the internal wiring
lead.
