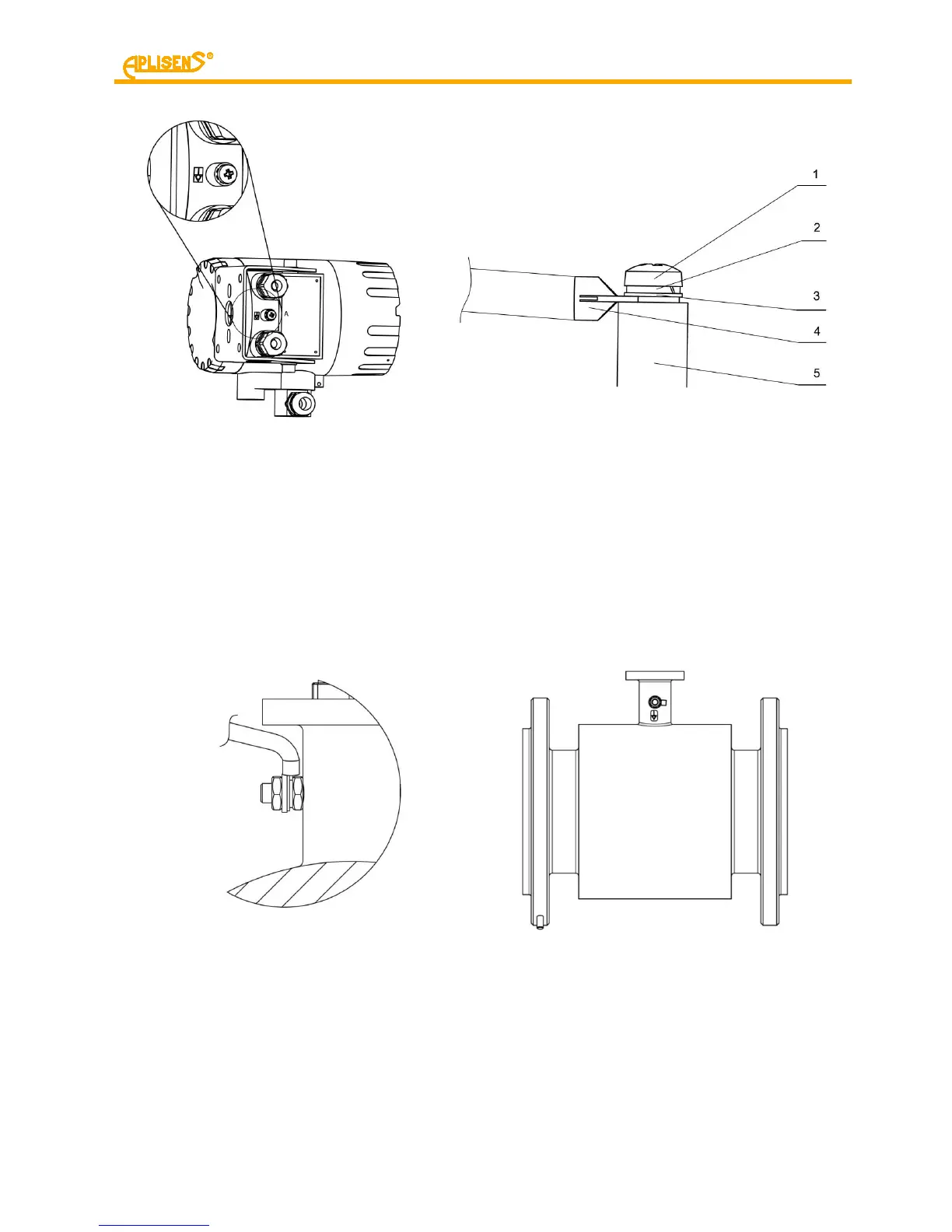

Figure 16 Manner of connection of the earthing functional for the converter housing.
The sequence of elements in the properly provided connection of the converter earthing
(on fig. from the top):
1. M5 screw
2. Spring washer M5
3. Tooth washer acc. to DIN 6797 J-M5
4. Wire terminated with a tip with M5 loop
5. Enclosure
Figure 17 Manner of connection of the earthing functional for the sensor housing.
Connection components in assembly order:
1. Nut M6
2. Wire terminated with a tip with M6 loop
3. Tooth washer acc. to DIN 6797 J-M6
4. Spring washer M6
5. Nut M6
