6.3.3. The converter design
The electronic module of the converter is placed in a solid aluminum housing. The housing
has two screwed-off covers. The cover with a glass pane allows for the permanent, local data
view on the display. The unscrewing of the lid enables the access to the three buttons of
the local device operation.
The unscrewing of the cover located opposite to the glass pane secures the access to
the connecting terminals (see: p.8.1).

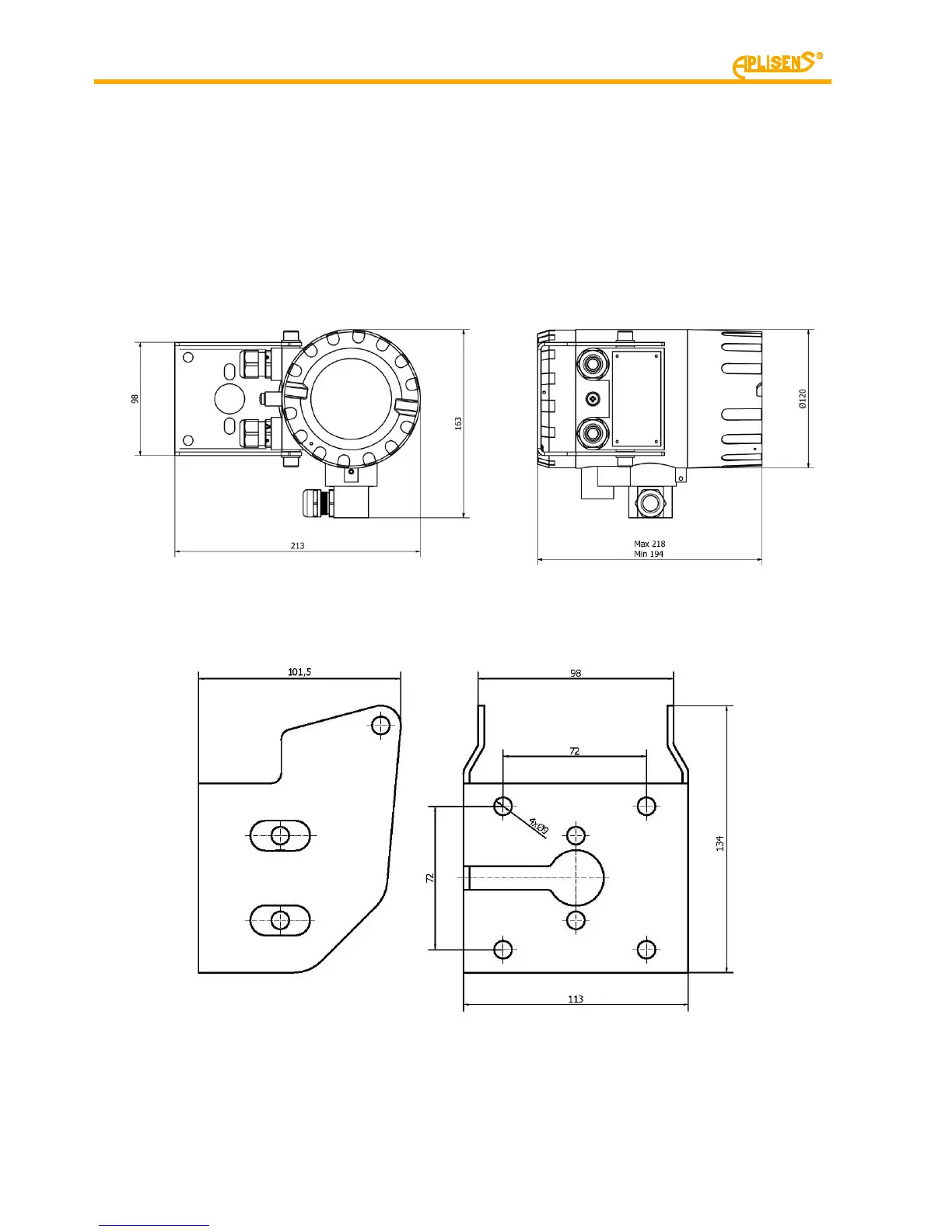

Figure 4. Converter of the flow meter PEM-1000 with the mounting bracket. Overall dimensions
Figure 5. Mounting bracket. Overall dimensions
