IO.PEM-1000(ENG)
20 02.A.003
8. CONNECTION
All connection and installation activities must be performed with
the disconnected power supply as well as other external voltages, if such are
applied.
Within close proximity to the converter of the flow meter (in the same room)
the protected power switch must be mounted on the power supply line of
the flow meter. It should be easily accessible and marked in a way which is
distinct and in accordance with symbols complying with local electrical device
safety regulations.

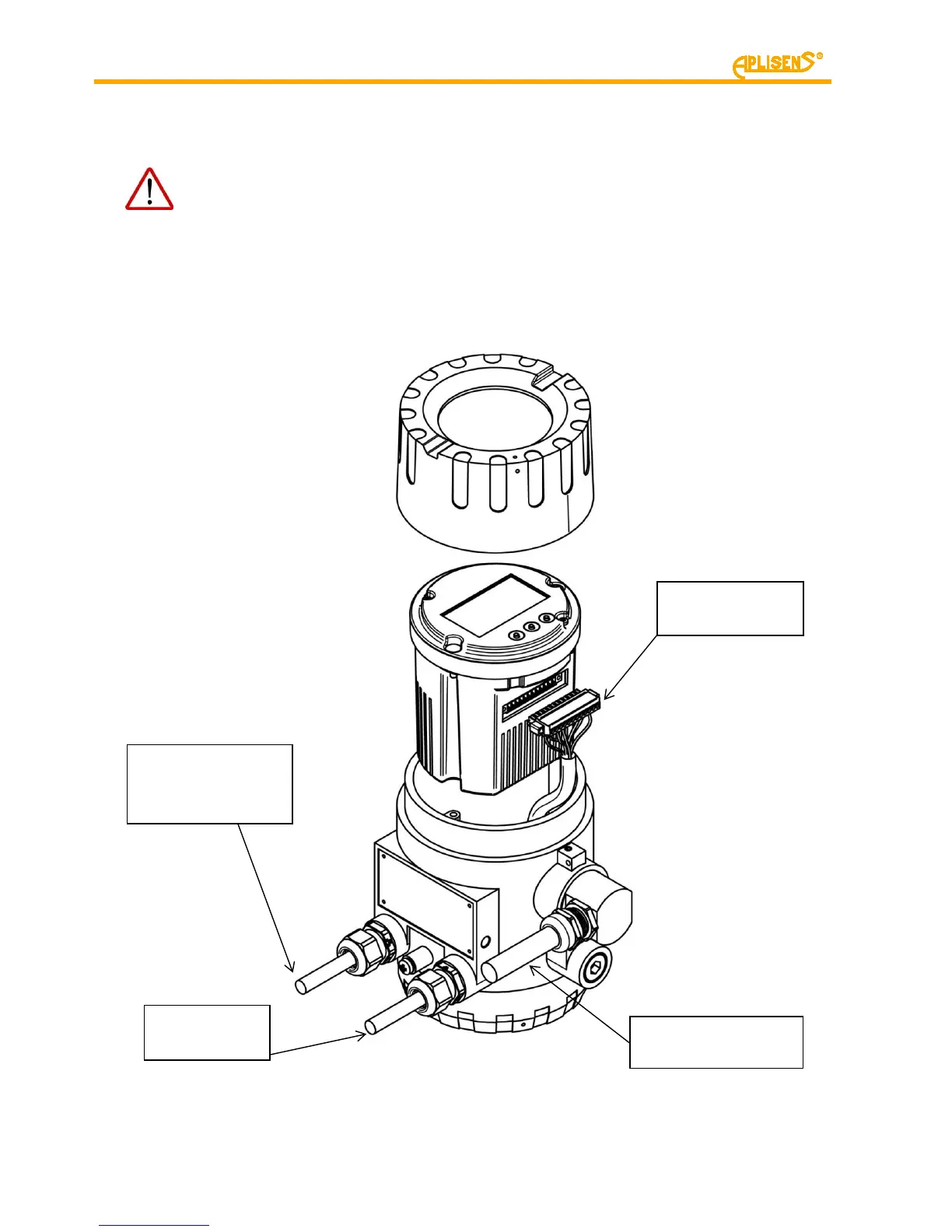

Figure 9 Stub-ups of electrical cables from the converter of the flow meter PEM-1000.
The signal cable
plug of the sensor
Cable
signal from the sensor
Output cable
4…20mA
Power cable
230V (or 10-36V DC
as an option)
