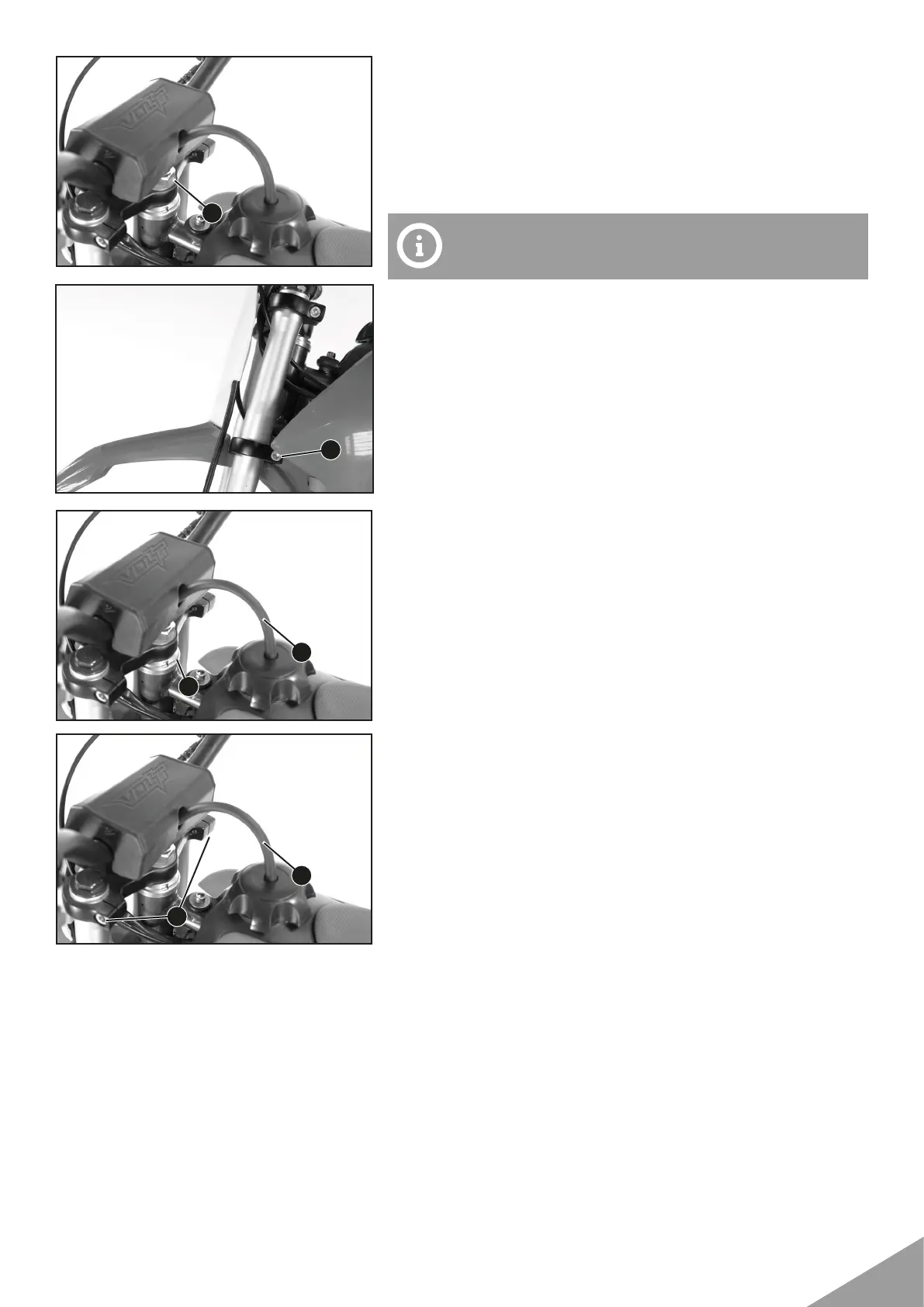

• Position the upper triple clamp with the handlebar.
• Mount nut 1, but do not tighten it yet.
• Position the fork legs.
• Tighten the screws 2.
Guideline
Screw, bottom triple clamp M8 15 Nm (11,1 lbf ft)
• Tighten the screws 3&1.
Guideline
Nut, steering head M22 10 Nm (7,4 lbf ft)
Guideline
Screw, top triple clamp M8 20 Nm (14,8 lbf ft)
• Tighten the screws 6.
Guideline
Screw, top triple clamp M8 22 Nm (16 lbf ft)
The second milled groove in the fork leg must be
flush with the upper edge of the upper triple clamp.
