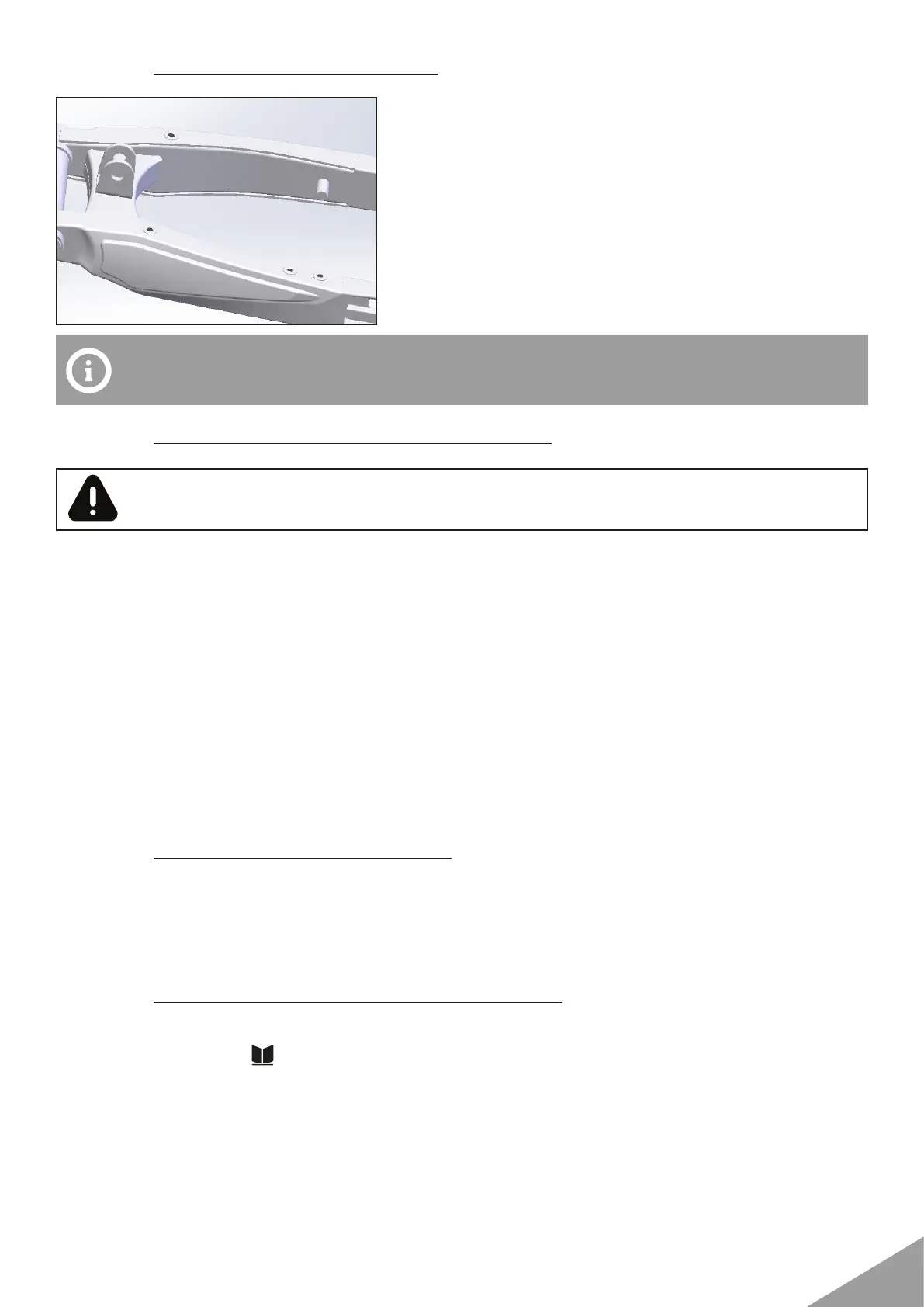

11.28 Checking the swingarm
Always change a damaged swingarm. Repair of the swingarm is not authorized by Apollo.
Check the swingarm for damage, cracking, and deformation.
If the swingarm shows signs of damage, cracking, or
deformation:
• Change the swingarm.
11.29 Checking the throttle cable routing
Danger of accidents
The throttle cable may slip out of the guide if routed incorrectly.
The throttle slide will then no longer be closed and the speed can no longer be controlled.
• Make sure that the throttle cable routing and the play in throttle cable complies with the specification.
Preparatory work
Turn the knurled screw on the fuel tap all the way clockwise.
Main work
Check the throttle cable routing.
The throttle cable must be routed to the carburetor between the handle bar and the start number plate,
then between the left front fork and the steering stem.
If the throttle cable is not routed as specified:
• Correct the throttle cable routing.
11.30 Checking the rubber grip
11.31 Additionally securing the rubber grip
• Check the rubber grips on the handlebar for damage, wear, and looseness.
If a rubber grip is damaged, worn, or loose:
• Change and secure the rubber grip.
Preparatory work
• Check the rubber grip ( .67).
Main work
• Secure the rubber grip at two locations with the retaining wire.
• The twisted wire ends face away from the palms and are bent in toward the rubber grip.
