Apple IMac - Hard Drive Carrier Replacement

Take Apart Hard Drive - 39
Hard Drive Carrier
Replacement
1 Route the hard drive and
CD-ROM cables under the
metal support bridge on
the chassis.

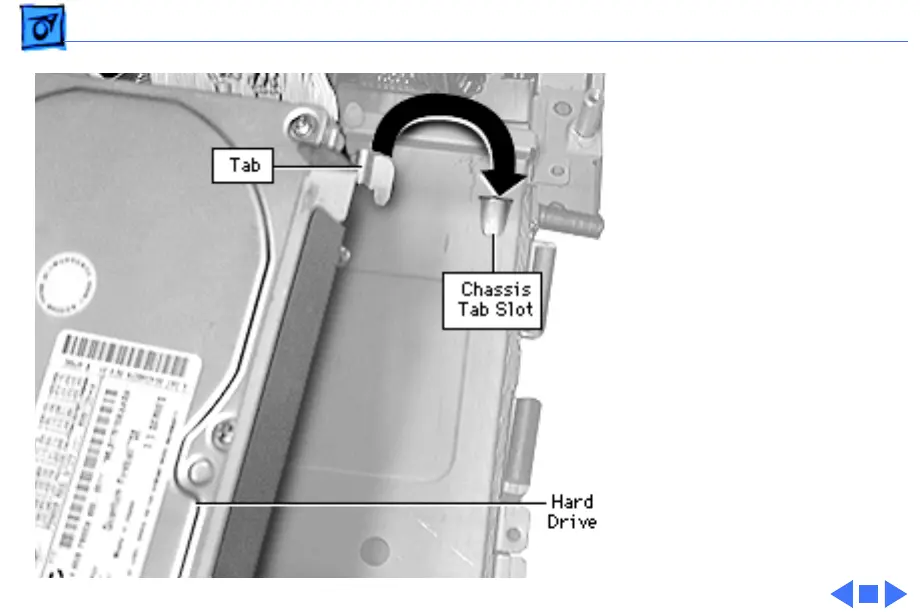

2 Slide the hard drive
carrier tab (one tab on
each side) into the
chassis tab slot.
3 Pull the hard drive/
carrier forward. Make
sure both tabs slide into
the tab slots on the logic
board/mass storage
chassis frame.
