Apple IMac - iMac Exploded View

Exploded View 1

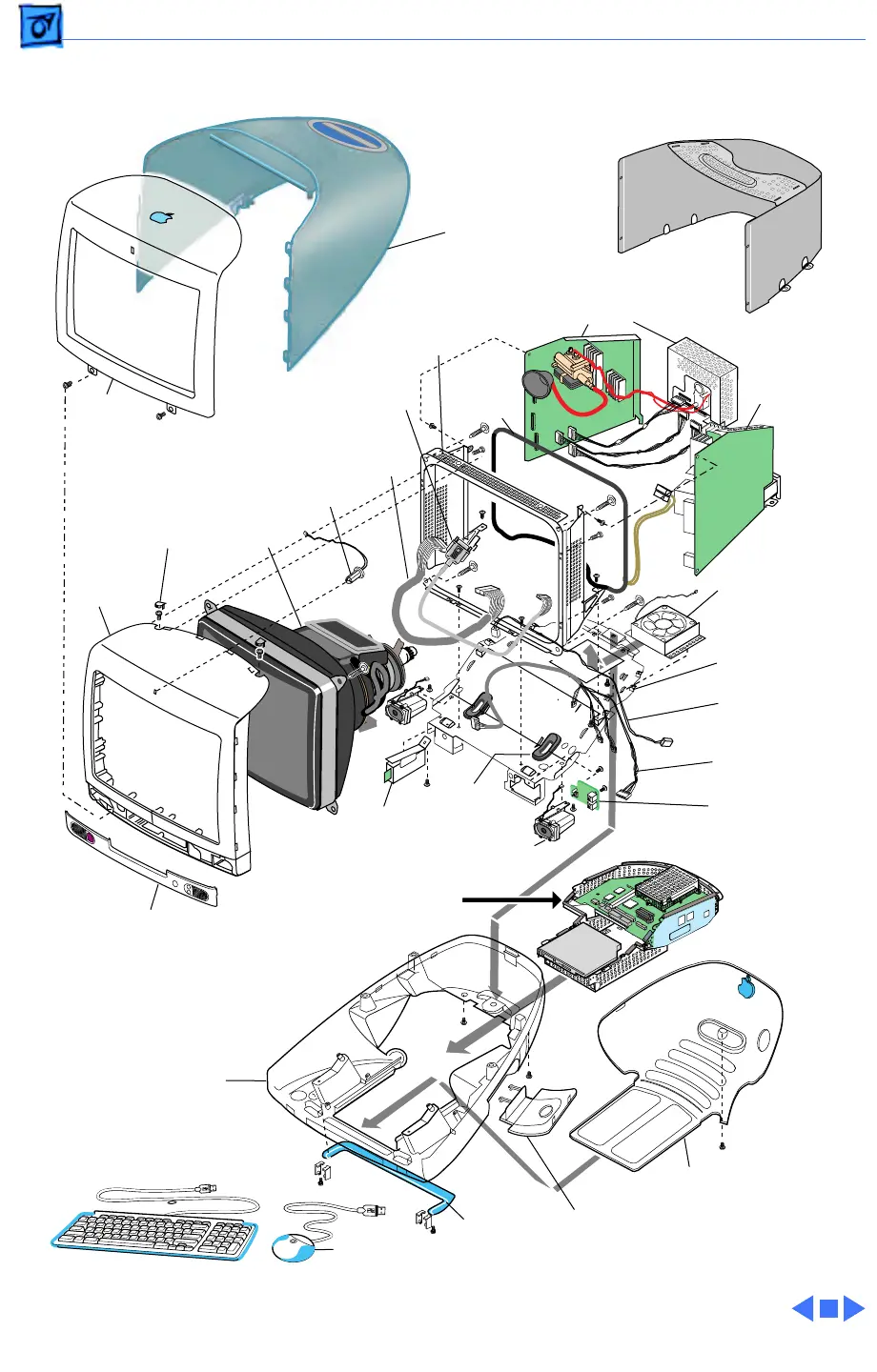

iMac Exploded View
661-2080
Analog/Video Board
922-3607
CRT
922-3566
Fan/Bracket
922-3610
Top CRT
Frame
922-3627
Bottom CRT
Frame
076-0747
Speaker
Kit
922-3578
Bottom Rear
Housing
922-3561
Top Rear
Housing
661-2081
Power
Supply
Board
922-3573
Lower Access
Cover
922-3564
Lower Front
Panel
922-3579
Microphone
922-3622
RGB/Video
Cable
922-3625
Power Supply
Cable
922-3585
IrDA Board
922-3568
Power/
Headphone
Board
076-0743
Foot with
Clips Kit
922-3559
USB Keyboard
922-3560
USB Mouse
922-3563
Outer
Front
Bezel
922-3615
Inner
Front
BezeL
922-3572
I/O Door
922-3624
5 Connector
Audio Cable
922-3623
LED Cable
922-3626
Cable
Gasket
DeGauss
Coil
076-0754
Screw
Covers
CRT EMI
Shield
See
Logic Board/Mass Storage
Chassis Exploded View
