Apple IMac - Page 206

Take Apart EMI Shield - 71

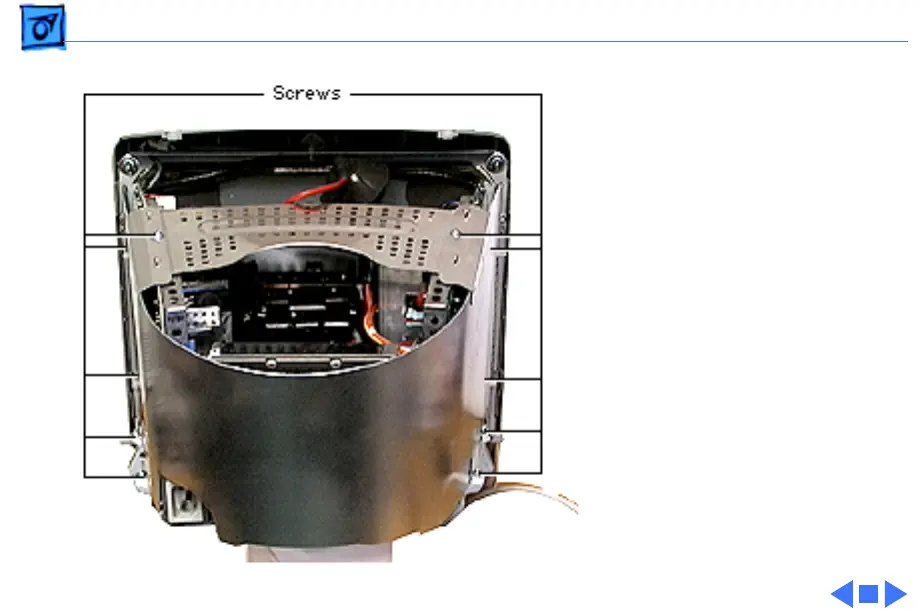

1 Remove the ten screws
on the EMI shield.
2 Pull out and up on the
EMI shield to remove it
from the chassis.
Replacement Note: Position
the tabs on the top of the
the EMI shield first, then line
up the remaining screws
holes.
