Apple IMac - Page 211

Take Apart Analog/Video Board - 76

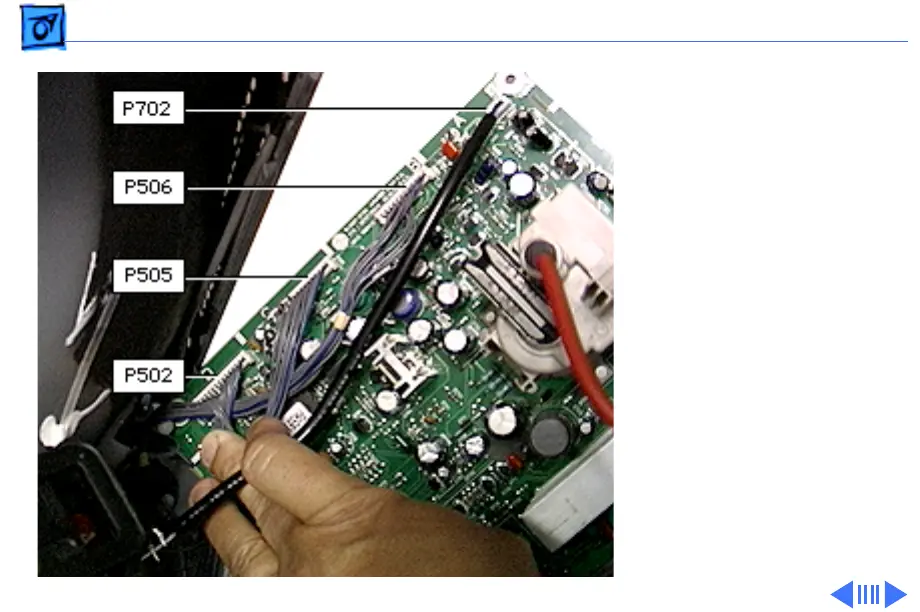

5 Lift the analog board out
and disconnect P702,
P505, P508 (2-pin fan
connector not shown),
P514 (3-pin connector
located under fingers in
photo, not shown), and a
4-pin multi-color CRT
cable (not shown).
Leave P506 and P502
(gray cables) attached
to the analog and video
board.
Replacement Note: This
board should have three
cables on it when you
return it to Apple: the
