Take Apart CRT - 86

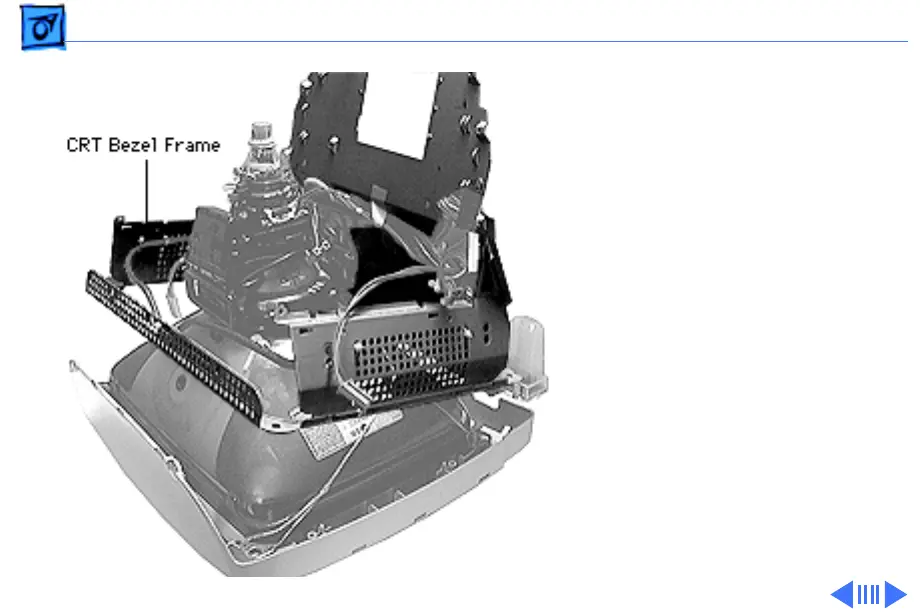

2 Lift the CRT bezel frame
off the CRT.
Shortcut: With the analog
and power supply boards
in place, remove the video
board off the CRT neck.
Disconnect P701 (large 4-
pin connector on the
analog board), P702 (3-
pin cable in the upper left
corner of the analog
board). Remove the anode
cap, and disconnect the
microphone cable. Lift the
CRT bezel frame and the
boards (intact) off the
inner plastic bezel.
