Apple IMac - Page 229

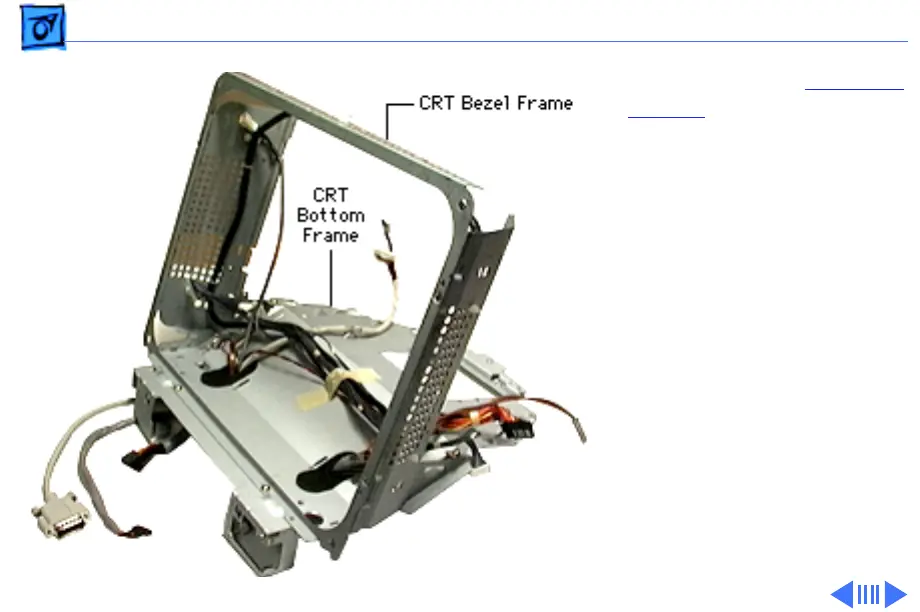

Take Apart CRT Frame - 94
Before you begin, discharge
the CRT and remove the
following:
• Lower access cover
• Main Logic board/mass
storage chassis
• Bottom rear housing
• Front lower panel
• Front outer bezel
• Top rear housing
• CRT EMI shield
• Analog/video board
• Power supply board
• CRT
• Speakers
• Headphone/power board
• IrDA board
