Upgrades SDRAM - 6

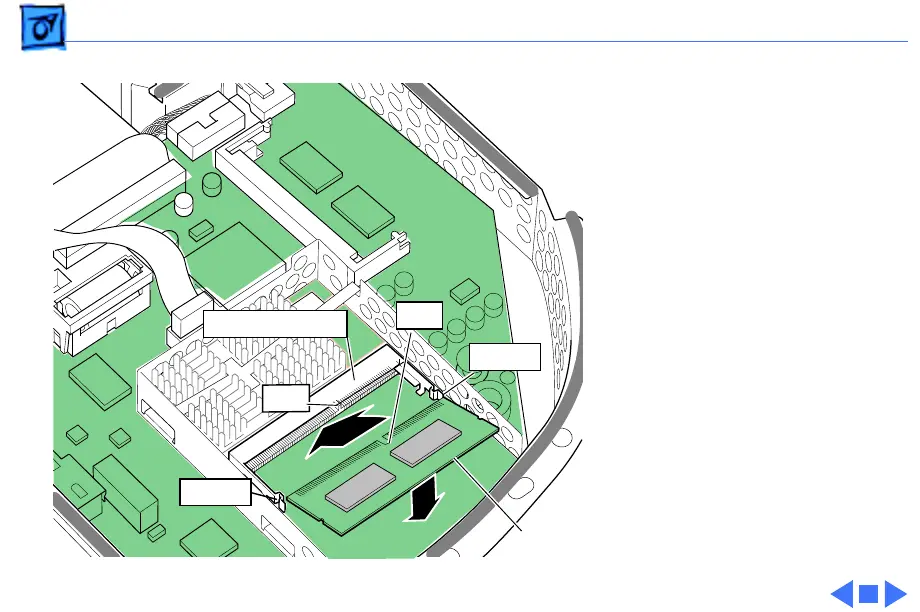

6 Line up the notch in the
SDRAM DIMM with the
small plastic tab in the
SDRAM slot. Push in on
the card and then down
until the two metal
snaps click into place.
Note: There are two
expansion slots for RAM
DIMM modules on the
microprocessor board.
One slot is on the top
side of the processor
card (as shown here)
and one slot is on the
underside of the
processor card.
Tab
Notch
Metal Tab
Metal Tab
RAM Expansion Slot
SDRAM
